Sample Corpus Train → Test Pipeline

Full training and evaluation pipeline driven by the SQL sample corpus:

SQLite DocumentStore
  → prepare classification / extraction splits
  → train TF-IDF + Random Forest (per application)
  → evaluate on held-out test split
  → run DICIE extraction eval on store-exported gold
  → summarize metrics

Applications:

This uses only synthetic data (see docs/data_provenance.md). Smoke-scale by default so it finishes quickly on CPU.

0. Setup

from __future__ import annotations

import json
import logging
import sqlite3
import sys
import time
from collections import Counter
from pathlib import Path

import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import Markdown, display

CWD = Path.cwd().resolve()
REPO_ROOT = CWD if (CWD / "pyproject.toml").exists() else CWD.parent
assert (REPO_ROOT / "pyproject.toml").exists(), f"Could not find repo root from {CWD}"
if str(REPO_ROOT) not in sys.path:
    sys.path.insert(0, str(REPO_ROOT))

from src.docie import DociePipeline
from src.docie.applications import list_applications, load_application
from src.docie.eval import evaluate_application
from src.docie.pipeline import run_file
from src.storage import DocumentStore
from src.storage.sample_generator import generate_claim_bundle, generate_corpus
from src.storage.schema import DDL, SCHEMA_VERSION
from src.storage.training import (
    fit_tfidf_random_forest,
    prepare_both_applications,
)
from src.storage.types import ClaimRecord, DocumentRecord, FieldRecord
from src.utils.config import Config
from src.utils.io import load_jsonl, read_json, write_json

logging.basicConfig(level=logging.INFO, format="%(levelname)s %(name)s: %(message)s")
cfg = Config.load()

DEMO = REPO_ROOT / "data" / "notebook_demo" / "sample_corpus"
DEMO.mkdir(parents=True, exist_ok=True)
DB_PATH = DEMO / "documents.db"
EXPORTS = DEMO / "exports"
EXPORTS.mkdir(parents=True, exist_ok=True)
PREPARED = DEMO / "prepared"
MODELS = DEMO / "models"
MODELS.mkdir(parents=True, exist_ok=True)

SEED = 42
print(f"repo:     {REPO_ROOT}")
print(f"demo db:  {DB_PATH}")
print(f"exports:  {EXPORTS}")
print(f"schema v: {SCHEMA_VERSION}")
print(f"apps:     {list_applications()}")
repo:     /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer
demo db:  /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/documents.db
exports:  /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/exports
schema v: 1
apps:     ['acord', 'medical_bills', 'salvage_claims']
SMOKE = True          # Fast RF + small corpus; set False for a larger run
MEDICAL_PER_TYPE = 10 if SMOKE else 30
SALVAGE_PER_TYPE = 10 if SMOKE else 30
BUNDLES = 2 if SMOKE else 4

if DB_PATH.exists():
    DB_PATH.unlink()
store = DocumentStore(DB_PATH)
corpus = generate_corpus(
    seed=SEED,
    medical_per_type=MEDICAL_PER_TYPE,
    salvage_per_type=SALVAGE_PER_TYPE,
    bundles_per_app=BUNDLES,
    include_canonical_fixtures=True,
)
store.bulk_upsert(corpus.documents, claims=corpus.claims)
store.add_provenance(
    stage="train_pipeline_seed",
    source="sample_corpus_train_test_pipeline",
    detail={"smoke": SMOKE, "documents": len(corpus.documents)},
)
display(store.summary())
pd.DataFrame(store.summary()["by_application_type"])
{'db_path': '/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/documents.db',
 'schema_version': 1,
 'claims': 70,
 'documents': 78,
 'fields': 390,
 'by_application_type': [{'application': 'medical_bills',
   'document_type': 'hcfa',
   'count': 13},
  {'application': 'medical_bills', 'document_type': 'other', 'count': 13},
  {'application': 'medical_bills', 'document_type': 'ub04', 'count': 13},
  {'application': 'salvage_claims', 'document_type': 'log', 'count': 13},
  {'application': 'salvage_claims', 'document_type': 'other', 'count': 13},
  {'application': 'salvage_claims', 'document_type': 'sales', 'count': 13}]}
application document_type count
0 medical_bills hcfa 13
1 medical_bills other 13
2 medical_bills ub04 13
3 salvage_claims log 13
4 salvage_claims other 13
5 salvage_claims sales 13

1. Prepare datasets from SQL (classification + extraction)

report = prepare_both_applications(store, PREPARED)
write_json(DEMO / "prepare_report.json", report)
print(json.dumps(report, indent=2)[:2000])

for app in ("medical_bills", "salvage_claims"):
    clf_summary = read_json(PREPARED / app / "classification" / "summary.json")
    ext_summary = read_json(PREPARED / app / "extraction" / "summary.json")
    print(app, "clf counts=", clf_summary["counts"], "ext all=", ext_summary["n_all"])
{
  "applications": {
    "medical_bills": {
      "classification": {
        "application": "medical_bills",
        "labels": [
          "hcfa",
          "ub04",
          "other"
        ],
        "counts": {
          "train": 26,
          "val": 5,
          "test": 8
        },
        "label_counts": {
          "hcfa": 13,
          "ub04": 13,
          "other": 13
        },
        "out_dir": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/prepared/medical_bills/classification"
      },
      "extraction": {
        "application": "medical_bills",
        "extraction_fields": [
          "claim_id",
          "name",
          "dob",
          "patient_id",
          "address"
        ],
        "counts": {
          "train": 26,
          "val": 5,
          "test": 8
        },
        "n_all": 39,
        "out_dir": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/prepared/medical_bills/extraction"
      }
    },
    "salvage_claims": {
      "classification": {
        "application": "salvage_claims",
        "labels": [
          "log",
          "sales",
          "other"
        ],
        "counts": {
          "train": 26,
          "val": 5,
          "test": 8
        },
        "label_counts": {
          "log": 13,
          "sales": 13,
          "other": 13
        },
        "out_dir": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/prepared/salvage_claims/classification"
      },
      "extraction": {
        "application": "salvage_claims",
        "extraction_fields": [
          "claim_id",
          "vin",
          "year",
          "make",
          "model"
        ],
        "counts": {
          "train": 26,
          "val": 5,
          "test": 8
        },
        "n_all": 39,
        "out_dir": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus/prepared/s
medical_bills clf counts= {'train': 26, 'val': 5, 'test': 8} ext all= 39
salvage_claims clf counts= {'train': 26, 'val': 5, 'test': 8} ext all= 39

Peek prepared rows + split balance

rows = []
for app in ("medical_bills", "salvage_claims"):
    for split in ("train", "val", "test"):
        path = PREPARED / app / "classification" / f"{split}.jsonl"
        for r in load_jsonl(path):
            rows.append({"application": app, "split": split, "label": r["label"]})
bal = pd.DataFrame(rows)
display(pd.crosstab([bal.application, bal.split], bal.label, margins=True))
label hcfa log other sales ub04 All
application split
medical_bills test 4 0 2 0 2 8
train 8 0 10 0 8 26
val 1 0 1 0 3 5
salvage_claims test 0 4 2 2 0 8
train 0 8 10 8 0 26
val 0 1 1 3 0 5
All 13 13 26 13 13 78

2. Train TF-IDF + Random Forest classifiers from store splits

train_metrics = {}
for app in ("medical_bills", "salvage_claims"):
    prepared_dir = PREPARED / app / "classification"
    model_out = MODELS / f"{app}_tfidf_rf.joblib"
    metrics = fit_tfidf_random_forest(
        prepared_dir,
        model_out=model_out,
        random_state=SEED,
        smoke=SMOKE,
    )
    train_metrics[app] = metrics
    print(
        f"{app}: train={metrics['n_train']} val_acc={metrics.get('val_accuracy')} "
        f"test_acc={metrics.get('test_accuracy')} test_macro_f1={metrics.get('test_macro_f1')}"
    )

write_json(DEMO / "rf_train_metrics.json", train_metrics)
pd.DataFrame(
    [
        {
            "application": app,
            "n_train": m["n_train"],
            "n_test": m["n_test"],
            "val_accuracy": m.get("val_accuracy"),
            "test_accuracy": m.get("test_accuracy"),
            "test_macro_f1": m.get("test_macro_f1"),
        }
        for app, m in train_metrics.items()
    ]
)
medical_bills: train=26 val_acc=1.0 test_acc=1.0 test_macro_f1=1.0
salvage_claims: train=26 val_acc=1.0 test_acc=1.0 test_macro_f1=1.0
application n_train n_test val_accuracy test_accuracy test_macro_f1
0 medical_bills 26 8 1.0 1.0 1.0
1 salvage_claims 26 8 1.0 1.0 1.0

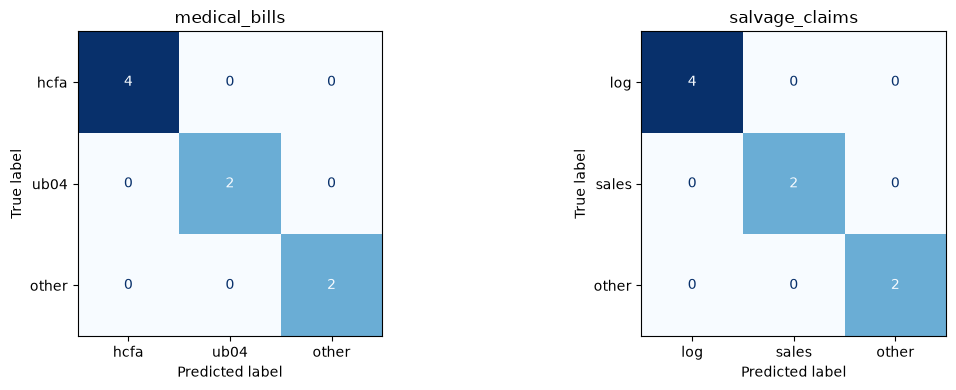

3. Test-set confusion matrices

import joblib
from sklearn.metrics import ConfusionMatrixDisplay, confusion_matrix

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
for ax, app in zip(axes, ("medical_bills", "salvage_claims")):
    bundle = joblib.load(MODELS / f"{app}_tfidf_rf.joblib")
    pipe = bundle["pipeline"]
    labels = bundle["labels"]
    test_rows = load_jsonl(PREPARED / app / "classification" / "test.jsonl")
    y_true = [r["label"] for r in test_rows]
    y_pred = list(pipe.predict([r["text"] for r in test_rows])) if test_rows else []
    if not test_rows:
        ax.set_title(f"{app} (no test rows)")
        continue
    cm = confusion_matrix(y_true, y_pred, labels=labels)
    ConfusionMatrixDisplay(cm, display_labels=labels).plot(ax=ax, colorbar=False, cmap="Blues")
    ax.set_title(app)
plt.tight_layout()
plt.show()

4. DICIE extraction eval on store-exported gold

docie_metrics = {}
for app in ("medical_bills", "salvage_claims"):
    gold = PREPARED / app / "extraction" / "docie_eval.jsonl"
    result = evaluate_application(
        app,
        eval_path=gold,
        cfg=cfg,
        run_ocr=False,
        limit=40 if SMOKE else None,
    )
    docie_metrics[app] = {
        "application": result["application"],
        "n": result["n"],
        "classification_accuracy": result["classification"]["accuracy"],
        "classification_macro_f1": result["classification"]["macro_f1"],
        "extraction_micro_f1": result["extraction"].get("micro_f1"),
        "extraction_macro_f1": result["extraction"].get("macro_f1"),
        "per_field": result["extraction"].get("per_field")
        or result["extraction"].get("fields"),
    }
    print(f"\n=== {app} ===")
    print(json.dumps(docie_metrics[app], indent=2)[:2000])

write_json(DEMO / "docie_eval_from_store.json", docie_metrics)
pd.DataFrame(
    [
        {
            "application": app,
            "n": m["n"],
            "clf_accuracy": m["classification_accuracy"],
            "clf_macro_f1": m["classification_macro_f1"],
            "ext_micro_f1": m["extraction_micro_f1"],
            "ext_macro_f1": m["extraction_macro_f1"],
        }
        for app, m in docie_metrics.items()
    ]
)

=== medical_bills ===
{
  "application": "medical_bills",
  "n": 39,
  "classification_accuracy": 1.0,
  "classification_macro_f1": 1.0,
  "extraction_micro_f1": 1.0,
  "extraction_macro_f1": 1.0,
  "per_field": {
    "name": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 39.0,
      "tp": 39.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "dob": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 26.0,
      "tp": 26.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "claim_id": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 26.0,
      "tp": 26.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "patient_id": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 26.0,
      "tp": 26.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "address": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 26.0,
      "tp": 26.0,
      "fp": 0.0,
      "fn": 0.0
    }
  }
}

=== salvage_claims ===
{
  "application": "salvage_claims",
  "n": 39,
  "classification_accuracy": 1.0,
  "classification_macro_f1": 1.0,
  "extraction_micro_f1": 1.0,
  "extraction_macro_f1": 1.0,
  "per_field": {
    "claim_id": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 39.0,
      "tp": 39.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "vin": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 38.0,
      "tp": 38.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "make": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 38.0,
      "tp": 38.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "model": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 38.0,
      "tp": 38.0,
      "fp": 0.0,
      "fn": 0.0
    },
    "year": {
      "precision": 1.0,
      "recall": 1.0,
      "f1": 1.0,
      "support": 38.0,
      "tp": 38.0,
      "fp": 0.0,
      "fn": 0.0
    }
  }
}
application n clf_accuracy clf_macro_f1 ext_micro_f1 ext_macro_f1
0 medical_bills 39 1.0 1.0 1.0 1.0
1 salvage_claims 39 1.0 1.0 1.0 1.0

5. Batch DICIE predictions written back as extracted fields

# Run salvage predictions and persist extracted fields into SQL (role=extracted)
salvage_export = EXPORTS / "train_pipeline_salvage_docie.jsonl"
store.export_jsonl(
    salvage_export, format="docie", application="salvage_claims", split="test"
)
pred_out = DEMO / "salvage_test_predictions.jsonl"
run_file(
    salvage_export,
    pred_out,
    application="salvage_claims",
    cfg=cfg,
    run_ocr=False,
)

n_updated = 0
for pred in load_jsonl(pred_out):
    rid = pred["record_id"]
    fields = pred.get("fields") or {}
    flat = {}
    for k, v in fields.items():
        if isinstance(v, list):
            flat[k] = v[0] if v else None
        else:
            flat[k] = v
    if not flat:
        continue
    conf = None
    if isinstance(pred.get("extraction"), dict):
        conf = pred["extraction"].get("confidence")
    store.set_fields(
        rid,
        {k: None if v is None else str(v) for k, v in flat.items()},
        role="extracted",
        confidence=conf,
    )
    n_updated += 1
print(f"wrote extracted fields for {n_updated} test documents")

cmp_sql = """
SELECT
  g.document_id,
  g.field_name,
  g.field_value AS ground_truth,
  e.field_value AS extracted
FROM document_fields g
LEFT JOIN document_fields e
  ON e.document_id = g.document_id
 AND e.field_name = g.field_name
 AND e.field_role = 'extracted'
WHERE g.field_role = 'ground_truth'
  AND g.document_id IN (
        SELECT document_id FROM documents
        WHERE split='test' AND application='salvage_claims'
      )
ORDER BY g.document_id, g.field_name
LIMIT 40
"""
with sqlite3.connect(DB_PATH) as conn:
    cmp = pd.read_sql_query(cmp_sql, conn)
cmp
wrote extracted fields for 8 test documents
document_id field_name ground_truth extracted
0 sal-bundle00-log claim_id CLM-2022-536774 CLM-2022-536774
1 sal-bundle00-log make BMW BMW
2 sal-bundle00-log model 330i 330i
3 sal-bundle00-log vin WBA8E9G50JNU12345 WBA8E9G50JNU12345
4 sal-bundle00-log year 2018 2018
5 sal-bundle01-log claim_id CLM-2023-165142 CLM-2023-165142
6 sal-bundle01-log make Toyota Toyota
7 sal-bundle01-log model Corolla Corolla
8 sal-bundle01-log vin 2T1BURHE0JC123456 2T1BURHE0JC123456
9 sal-bundle01-log year 2017 2017
10 sal-log-001 claim_id CLM-2024-100200 CLM-2024-100200
11 sal-log-001 make Honda Honda
12 sal-log-001 model Accord Accord
13 sal-log-001 vin 1HGCM82633A004352 1HGCM82633A004352
14 sal-log-001 year 2018 2018
15 sal-log-100 claim_id CLM-2022-232378 CLM-2022-232378
16 sal-log-100 make Honda Honda
17 sal-log-100 model Accord Accord
18 sal-log-100 vin 1HGCM82633A004352 1HGCM82633A004352
19 sal-log-100 year 2018 2018
20 sal-other-003 claim_id CLM-2024-100202 CLM-2024-100202
21 sal-other-003 make NaN NaN
22 sal-other-003 model NaN NaN
23 sal-other-003 vin NaN NaN
24 sal-other-003 year NaN NaN
25 sal-other-100 claim_id CLM-2025-711484 CLM-2025-711484
26 sal-other-100 make Tesla Tesla
27 sal-other-100 model Model 3 Model 3
28 sal-other-100 vin 5YJSA1E26HF000111 5YJSA1E26HF000111
29 sal-other-100 year 2019 2019
30 sal-sales-002 claim_id CLM-2024-100201 CLM-2024-100201
31 sal-sales-002 make Ford Ford
32 sal-sales-002 model Focus Focus
33 sal-sales-002 vin 1FADP3F20EL123456 1FADP3F20EL123456
34 sal-sales-002 year 2015 2015
35 sal-sales-100 claim_id CLM-2024-338536 CLM-2024-338536
36 sal-sales-100 make Jeep Jeep
37 sal-sales-100 model Grand Cherokee Grand Cherokee
38 sal-sales-100 vin 1C4RJFBG5EC123456 1C4RJFBG5EC123456
39 sal-sales-100 year 2014 2014

6. Optional DistilBERT smoke train (transformers)

# Optional deep classifier smoke — skipped automatically if deps/data are insufficient.
RUN_TRANSFORMERS_SMOKE = False  # set True on machines with transformers + datasets installed

transformers_metrics = {}
if RUN_TRANSFORMERS_SMOKE:
    try:
        from src.classification.eval import evaluate as eval_clf
        from src.classification.train_classifier import train as train_clf

        for app in ("medical_bills", "salvage_claims"):
            prepared = PREPARED / app / "classification"
            out_dir = MODELS / f"{app}_distilbert_smoke"
            model_dir = train_clf(
                prepared_dir=prepared,
                cfg=cfg,
                output_dir=out_dir,
                smoke=True,
                wandb_settings=None,
            )
            metrics = eval_clf(model_dir=model_dir, prepared_dir=prepared, cfg=cfg)
            transformers_metrics[app] = {
                k: metrics[k]
                for k in metrics
                if k in ("accuracy", "macro_f1", "weighted_f1", "n")
            }
            print(app, transformers_metrics[app])
    except Exception as exc:
        print("Transformers smoke skipped/failed:", exc)
else:
    print("RUN_TRANSFORMERS_SMOKE=False — using TF-IDF RF metrics only")
write_json(DEMO / "transformers_smoke_metrics.json", transformers_metrics)
RUN_TRANSFORMERS_SMOKE=False — using TF-IDF RF metrics only

7. Pipeline scorecard

scorecard = []
for app, m in train_metrics.items():
    scorecard.append(
        {
            "application": app,
            "model": "tfidf_rf",
            "test_accuracy": m.get("test_accuracy"),
            "test_macro_f1": m.get("test_macro_f1"),
            "n_train": m["n_train"],
            "n_test": m["n_test"],
            "docie_clf_accuracy": docie_metrics[app]["classification_accuracy"],
            "docie_ext_micro_f1": docie_metrics[app]["extraction_micro_f1"],
        }
    )
score_df = pd.DataFrame(scorecard)
display(score_df)
write_json(
    DEMO / "pipeline_scorecard.json",
    {
        "rf": {
            app: {k: v for k, v in m.items() if k != "val_report" and k != "test_report"}
            for app, m in train_metrics.items()
        },
        "docie": docie_metrics,
        "db_path": str(DB_PATH),
        "prepared": str(PREPARED),
    },
)
print("artifacts under", DEMO)
for p in sorted(DEMO.rglob("*")):
    if p.is_file():
        print(" ", p.relative_to(DEMO))
application model test_accuracy test_macro_f1 n_train n_test docie_clf_accuracy docie_ext_micro_f1
0 medical_bills tfidf_rf 1.0 1.0 26 8 1.0 1.0
1 salvage_claims tfidf_rf 1.0 1.0 26 8 1.0 1.0
artifacts under /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/sample_corpus
  docie_eval_from_store.json
  documents.db
  documents_roundtrip.db
  exports/sql_roundtrip_docie.jsonl
  exports/train_pipeline_salvage_docie.jsonl
  models/medical_bills_tfidf_rf.joblib
  models/medical_bills_tfidf_rf.metrics.json
  models/salvage_claims_tfidf_rf.joblib
  models/salvage_claims_tfidf_rf.metrics.json
  pipeline_scorecard.json
  prepare_report.json
  prepared/medical_bills/classification/all.jsonl
  prepared/medical_bills/classification/label2id.json
  prepared/medical_bills/classification/summary.json
  prepared/medical_bills/classification/test.jsonl
  prepared/medical_bills/classification/train.jsonl
  prepared/medical_bills/classification/val.jsonl
  prepared/medical_bills/extraction/docie_eval.jsonl
  prepared/medical_bills/extraction/summary.json
  prepared/medical_bills/extraction/test.jsonl
  prepared/medical_bills/extraction/train.jsonl
  prepared/medical_bills/extraction/val.jsonl
  prepared/prepare_report.json
  prepared/salvage_claims/classification/all.jsonl
  prepared/salvage_claims/classification/label2id.json
  prepared/salvage_claims/classification/summary.json
  prepared/salvage_claims/classification/test.jsonl
  prepared/salvage_claims/classification/train.jsonl
  prepared/salvage_claims/classification/val.jsonl
  prepared/salvage_claims/extraction/docie_eval.jsonl
  prepared/salvage_claims/extraction/summary.json
  prepared/salvage_claims/extraction/test.jsonl
  prepared/salvage_claims/extraction/train.jsonl
  prepared/salvage_claims/extraction/val.jsonl
  rf_train_metrics.json
  salvage_test_predictions.human_review.jsonl
  salvage_test_predictions.jsonl
  salvage_test_predictions.summary.json
  transformers_smoke_metrics.json

Recap

  1. Seeded a synthetic medical + salvage corpus into SQLite
  2. Prepared application-specific train/val/test JSONL from SQL splits
  3. Trained / tested TF-IDF + Random Forest classifiers per application
  4. Evaluated DICIE extraction against store-exported gold
  5. Wrote model extractions back into document_fields (role=extracted)

CLI equivalents:

python -m src.storage seed --seed 42
python -m src.storage export --format docie --application salvage_claims \
  --out data/sample_corpus/exports/salvage_docie.jsonl
python -m src.docie.eval --application salvage_claims \
  --eval-set data/notebook_demo/sample_corpus/prepared/salvage_claims/extraction/docie_eval.jsonl
Back to top
