DICIE Pipeline Walkthrough — `src/docie/`

This notebook is a complete, stage-by-stage showcase of the Document Image Classification and Information Extraction (DICIE) chain implemented in src/docie/.

It follows Fig. 1 from Raj, Dickinson & Fung, Document Classification and Information Extraction framework for Insurance Applications:

Input (PDF / page images / text)
  → Stage 1  Document Processing
  → Stage 2  Document Classification  (+ page aggregation)
  → Stage 3  Information Extraction
  → Output   Aggregated prediction → response / downstream

Section	What you will see
0	Setup, config, demo knobs
1	Application profiles & taxonomies
2	Fixture corpus overview
3	Stage 1 — process text → page image + OCR text

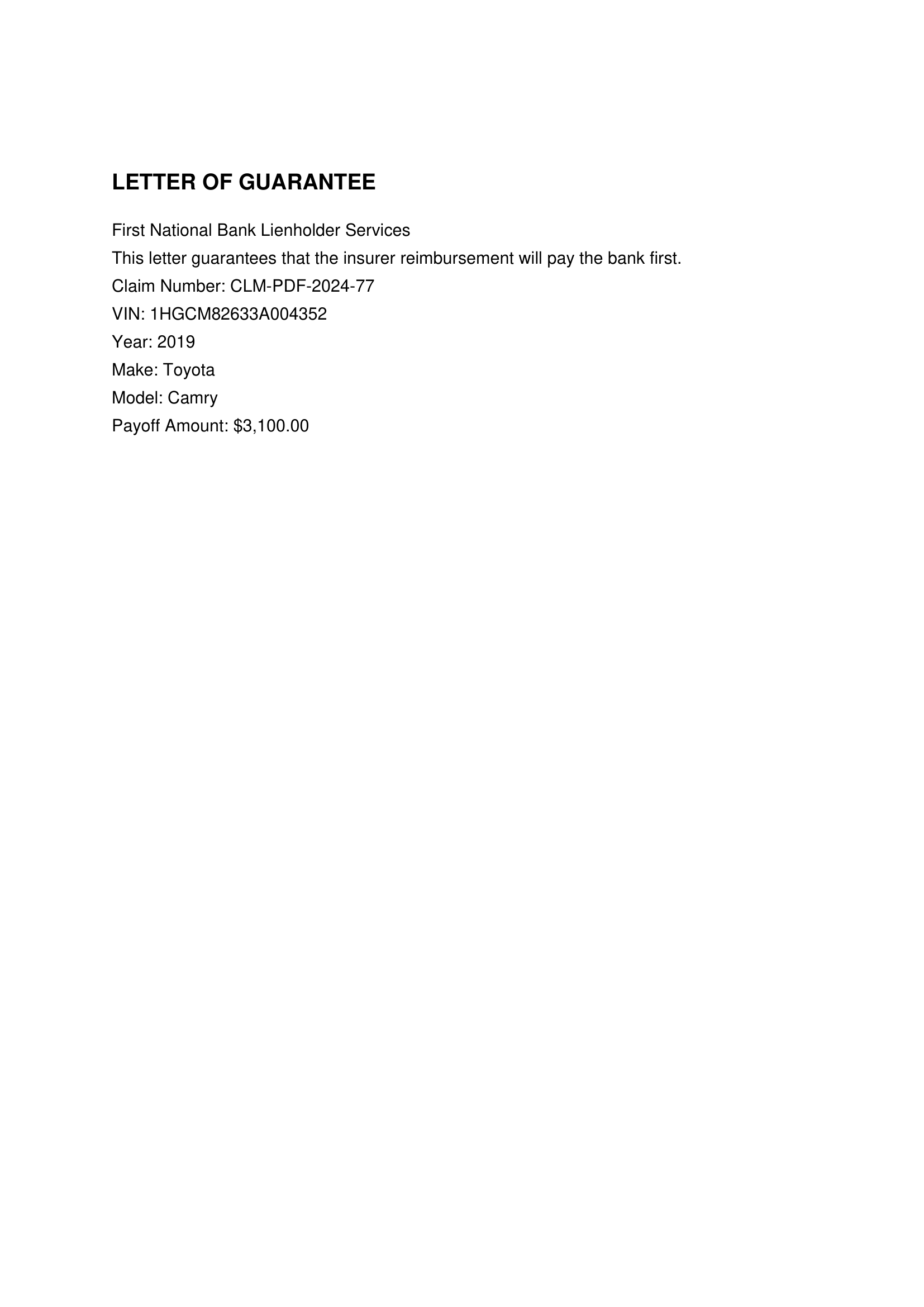

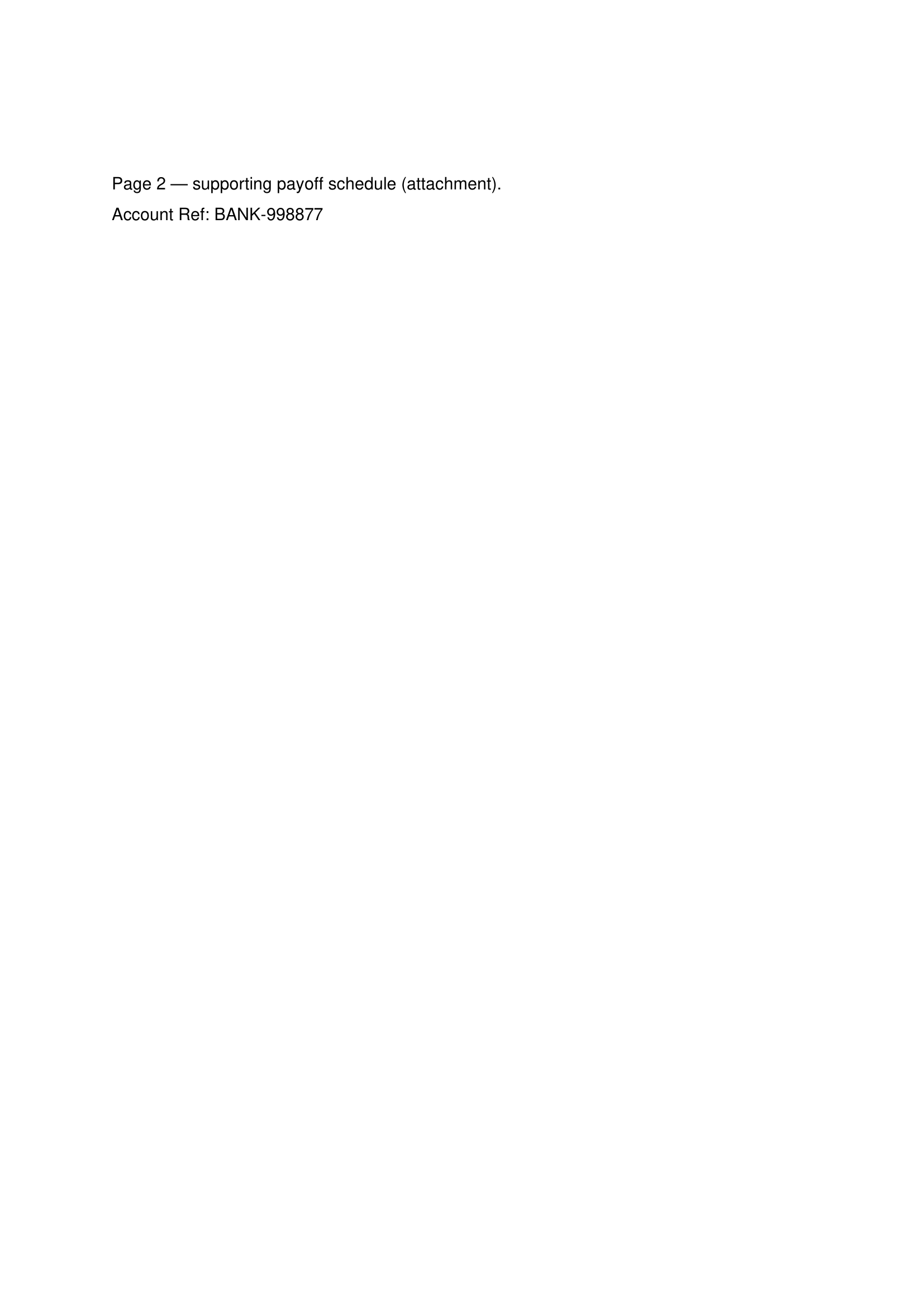

4	Stage 1 — process a multi-line PDF
5	Stage 2 — per-page classify + majority aggregation
6	Stage 2 — prefer-non-`other` tie-break
7	Stage 3 — heuristic field extraction
8	Stage 4 — aggregate, review flags, response payload
9	Full `DociePipeline` — salvage LOG
10	Full `DociePipeline` — medical HCFA
11	Batch JSONL via `run_file`
12	Downstream sink + optional model backends
13	Contrast with `src/pipeline/` memo chain

No API keys required. The default path uses keyword heuristics + regex extraction.
OCR (pip install -e ".[ocr]" + system Tesseract) is optional; this notebook defaults to RUN_OCR = False so it runs cleanly on CPU without Tesseract.

Canonical docs: docs/docie_pipeline.md, docs/architecture.md.

0. Setup

Put the repo root on sys.path, load Config, and create a demo output directory under data/notebook_demo/docie/.

from __future__ import annotations

import json
import logging
import sys
from collections import Counter
from pathlib import Path

import matplotlib.pyplot as plt
import pandas as pd
import yaml
from IPython.display import Image as IPyImage
from IPython.display import Markdown, display

# Resolve repo root whether the kernel cwd is repo root or notebooks/
CWD = Path.cwd().resolve()
# Walk up from docs/notebooks/ (or notebooks/) until pyproject.toml is found.
REPO_ROOT = next(
    (p for p in (CWD, *CWD.parents) if (p / "pyproject.toml").exists()),
    None,
)
assert REPO_ROOT is not None, f"Could not find repo root from {CWD}"
if str(REPO_ROOT) not in sys.path:
    sys.path.insert(0, str(REPO_ROOT))

from src.docie import DociePipeline, process_document
from src.docie.aggregate import aggregate_prediction, push_downstream
from src.docie.applications import list_applications, load_application
from src.docie.classify import (
    aggregate_page_predictions,
    classify_document,
    classify_page_text,
)
from src.docie.extract import extract_information, heuristic_extract
from src.docie.pipeline import run_file
from src.docie.processing import process_document_input
from src.docie.types import PageClassification
from src.utils.config import Config
from src.utils.io import load_jsonl, read_json

logging.basicConfig(level=logging.INFO, format="%(levelname)s %(name)s: %(message)s")

cfg = Config.load()

# --- Demo knobs ---
RUN_OCR = False  # set True if pytesseract + Tesseract are installed
DPI = 200        # lower than production 300 for faster PDF renders in the notebook

DEMO = REPO_ROOT / "data" / "notebook_demo" / "docie"
CACHE = DEMO / "cache"
DEMO.mkdir(parents=True, exist_ok=True)
CACHE.mkdir(parents=True, exist_ok=True)

FIXTURES = REPO_ROOT / "tests" / "fixtures" / "sample_docie_documents.jsonl"

print(f"repo:     {REPO_ROOT}")
print(f"python:   {sys.version.split()[0]}")
print(f"apps:     {list_applications()}")
print(f"RUN_OCR:  {RUN_OCR}  DPI={DPI}")
print(f"demo →    {DEMO}")
print(f"fixtures: {FIXTURES.exists()}")

repo:     /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer
python:   3.11.15
apps:     ['acord', 'medical_bills', 'salvage_claims']
RUN_OCR:  False  DPI=200
demo →    /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie
fixtures: True

Helper — pretty-print nested prediction dicts

def show_json(obj, *, title: str | None = None, max_chars: int = 4000) -> None:
    """Display a dict / dataclass dump as a fenced JSON block."""
    if hasattr(obj, "to_dict"):
        obj = obj.to_dict()
    text = json.dumps(obj, indent=2, ensure_ascii=False, default=str)
    if len(text) > max_chars:
        text = text[:max_chars] + "\n… (truncated)"
    if title:
        display(Markdown(f"**{title}**"))
    display(Markdown(f"```json\n{text}\n```"))


def show_page_image(page, *, title: str | None = None) -> None:
    path = Path(page.image_path)
    if title:
        display(Markdown(f"**{title}** — `{path.name}` ({page.width}×{page.height}, dpi={page.dpi}, ocr=`{page.ocr_backend}`)"))
    if path.exists():
        display(IPyImage(filename=str(path), width=min(520, page.width)))
    else:
        print(f"missing page image: {path}")

1. Application profiles & taxonomies

DICIE is application-scoped. Each profile (loaded from YAML under taxonomy/) defines:

labels — document classes for Stage 2
aliases — keyword cues used by the heuristic classifier
extraction_fields — Stage 3 targets
business rules — e.g. prefer non-other on ties, human-review confidence threshold

Application	Classes	Extracted fields
`medical_bills`	`hcfa`, `ub04`, `other`	claim_id, name, dob, patient_id, address
`salvage_claims`	`log`, `sales`, `other`	claim_id, vin, year, make, model
`acord`	ACORD intake taxonomy	claim / policy / loss fields

profiles = {name: load_application(name) for name in list_applications()}

rows = []
for name, profile in profiles.items():
    rows.append(
        {
            "application": profile.name,
            "n_labels": len(profile.labels),
            "labels": ", ".join(profile.labels[:8]) + ("…" if len(profile.labels) > 8 else ""),
            "extraction_fields": ", ".join(profile.extraction_fields),
            "prefer_non_other": profile.prefer_non_other,
            "review_threshold": profile.review_confidence_threshold,
            "taxonomy": str(profile.taxonomy_path.relative_to(REPO_ROOT)) if profile.taxonomy_path else "—",
        }
    )

display(pd.DataFrame(rows))

for app in ("salvage_claims", "medical_bills"):
    p = profiles[app]
    display(Markdown(f"### `{app}`\n\n{p.description}\n"))
    alias_df = pd.DataFrame(
        [{"label": lab, "aliases": ", ".join(p.aliases.get(lab, []))} for lab in p.labels]
    )
    display(alias_df)

	application	n_labels	labels	extraction_fields	prefer_non_other	review_threshold	taxonomy
0	acord	9	application_commercial, application_personal, ...	claim_id, policy_number, policyholder_name, da...	True	0.55	taxonomy/acord_form_categories.yaml
1	medical_bills	3	hcfa, ub04, other	claim_id, name, dob, patient_id, address	True	0.55	taxonomy/medical_bills.yaml
2	salvage_claims	3	log, sales, other	claim_id, vin, year, make, model	True	0.55	taxonomy/salvage_claims.yaml

`salvage_claims`

Classify bank-issued letters of guarantee and related salvage attachments, then extract vehicle identifiers for total-loss automobile claims.

	label	aliases
0	log	LOG, Letter of Guarantee, Letter Of Guarantee,...
1	sales	SALES, Sales Receipt, Sales Tax, Bill of Sale
2	other	OTHER, Salvage Other

`medical_bills`

Medical bill classification and claimant information extraction for automobile insurance casualty claims review and re-pricing.

	label	aliases
0	hcfa	HCFA, CMS-1500, CMS 1500, Health Care Finance ...
1	ub04	UB, UB-04, UB04, Uniform Billing, CMS-1450
2	other	Non-standard, OTHER, Medical Other

Inspect the raw YAML that backs the salvage profile:

salvage_yaml = yaml.safe_load(
    (REPO_ROOT / "taxonomy" / "salvage_claims.yaml").read_text(encoding="utf-8")
)
show_json(salvage_yaml, title="taxonomy/salvage_claims.yaml")

taxonomy/salvage_claims.yaml

{
  "application": "salvage_claims",
  "description": "Classify bank-issued letters of guarantee and related salvage attachments, then extract vehicle identifiers for total-loss automobile claims.\n",
  "categories": [
    {
      "label": "log",
      "aliases": [
        "LOG",
        "Letter of Guarantee",
        "Letter Of Guarantee",
        "Guarantee"
      ],
      "description": "Bank-issued letter of guarantee for loan/lease payoff on a total-loss vehicle."
    },
    {
      "label": "sales",
      "aliases": [
        "SALES",
        "Sales Receipt",
        "Sales Tax",
        "Bill of Sale"
      ],
      "description": "Salvage sales receipt or sales-tax documentation."
    },
    {
      "label": "other",
      "aliases": [
        "OTHER",
        "Salvage Other"
      ],
      "description": "Other salvage-claim attachments that are neither LOG nor sales receipt."
    }
  ],
  "extraction_fields": [
    "claim_id",
    "vin",
    "year",
    "make",
    "model"
  ],
  "business_rules": {
    "prefer_non_other": true,
    "review_confidence_threshold": 0.55
  }
}

2. Fixture corpus

tests/fixtures/sample_docie_documents.jsonl ships six labeled text documents — three medical, three salvage — covering the positive classes and an other negative for each application.

fixture_rows = load_jsonl(FIXTURES)
fixture_df = pd.DataFrame(
    [
        {
            "record_id": r["record_id"],
            "application": r["application"],
            "document_type": r["document_type"],
            "chars": len(r["text"]),
            "preview": r["text"].splitlines()[0][:60],
        }
        for r in fixture_rows
    ]
)
display(fixture_df)

by_id = {r["record_id"]: r for r in fixture_rows}
LOG_TEXT = by_id["sal-log-001"]["text"]
HCFA_TEXT = by_id["med-hcfa-001"]["text"]

display(Markdown("### Sample — salvage Letter of Guarantee"))
print(LOG_TEXT)
display(Markdown("### Sample — medical HCFA / CMS-1500"))
print(HCFA_TEXT)

	record_id	application	document_type	chars	preview
0	med-hcfa-001	medical_bills	hcfa	292	HCFA CMS-1500 HEALTH INSURANCE CLAIM FORM
1	med-ub04-002	medical_bills	ub04	226	UB-04 UNIFORM BILLING FORM CMS-1450
2	med-other-003	medical_bills	other	155	COMMUNITY CLINIC STATEMENT
3	sal-log-001	salvage_claims	log	253	LETTER OF GUARANTEE
4	sal-sales-002	salvage_claims	sales	203	SALVAGE SALES RECEIPT
5	sal-other-003	salvage_claims	other	120	TOWING INVOICE

Sample — salvage Letter of Guarantee

LETTER OF GUARANTEE
First National Bank Lienholder Services
This letter guarantees that the insurer reimbursement will pay the bank first.
Claim Number: CLM-2024-100200
VIN: 1HGCM82633A004352
Year: 2018
Make: Honda
Model: Accord
Payoff Amount: $4,250.00

Sample — medical HCFA / CMS-1500

HCFA CMS-1500 HEALTH INSURANCE CLAIM FORM
Physician or Supplier Information
Patient Name: Jane Q Public
Date of Birth: 03/14/1988
Patient ID: PID-778812
Claim Number: CLM-2024-551122
Address: 100 Oak Avenue, Madison WI 53703
Carrier Name: American Family
Diagnosis and procedure codes follow.

3. Stage 1 — Document Processing (text input)

process_document_input is the image-first entry point:

Accept PDF, image, plain text, or empty
Render / preprocess to grayscale page PNG(s) under a cache directory
Optionally OCR (PyTesseract) → word tokens with 0–1000 normalized boxes
Return a ProcessedDocument ready for classify + extract

Text inputs are rendered to a page image so the rest of the chain stays image-first (paper §V.C).

salvage = load_application("salvage_claims")

processed_log = process_document_input(
    record_id="walkthrough-log",
    text=LOG_TEXT,
    cache_dir=CACHE / "pages",
    application="salvage_claims",
    dpi=DPI,
    grayscale=True,
    run_ocr=RUN_OCR,
    metadata={"fixture": "sal-log-001", "stage": "walkthrough"},
)

print(f"record_id:   {processed_log.record_id}")
print(f"source_kind: {processed_log.source_kind}")
print(f"n_pages:     {len(processed_log.pages)}")
print(f"application: {processed_log.application}")
print()
print("--- full_text ---")
print(processed_log.full_text)

page0 = processed_log.pages[0]
show_page_image(page0, title="Stage 1 page image (text → rendered PNG)")
show_json(
    {
        "page_index": page0.page_index,
        "image_path": str(page0.image_path),
        "width": page0.width,
        "height": page0.height,
        "dpi": page0.dpi,
        "grayscale": page0.grayscale,
        "ocr_backend": page0.ocr_backend,
        "n_words": len(page0.words),
        "text_preview": page0.text[:200],
    },
    title="PageImage summary",
)

record_id:   walkthrough-log
source_kind: text
n_pages:     1
application: salvage_claims

--- full_text ---
LETTER OF GUARANTEE
First National Bank Lienholder Services
This letter guarantees that the insurer reimbursement will pay the bank first.
Claim Number: CLM-2024-100200
VIN: 1HGCM82633A004352
Year: 2018
Make: Honda
Model: Accord
Payoff Amount: $4,250.00

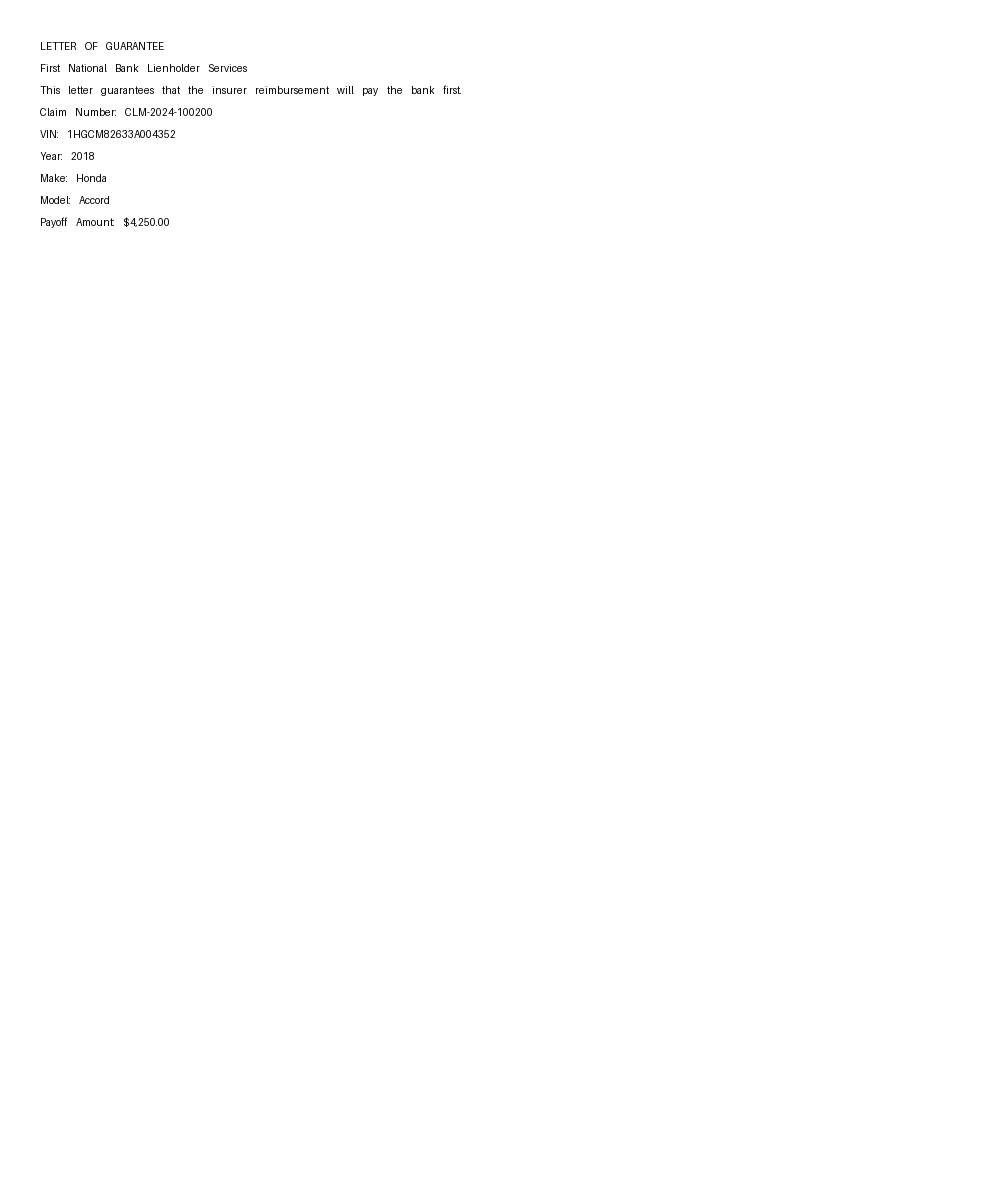

Stage 1 page image (text → rendered PNG) — walkthrough-log__5750df1a2104a5cc__page_000.png (1000×1200, dpi=200, ocr=rendered_text)

PageImage summary

{
  "page_index": 0,
  "image_path": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/cache/pages/walkthrough-log__5750df1a2104a5cc__page_000.png",
  "width": 1000,
  "height": 1200,
  "dpi": 200,
  "grayscale": true,
  "ocr_backend": "rendered_text",
  "n_words": 34,
  "text_preview": "LETTER OF GUARANTEE\nFirst National Bank Lienholder Services\nThis letter guarantees that the insurer reimbursement will pay the bank first.\nClaim Number: CLM-2024-100200\nVIN: 1HGCM82633A004352\nYear: 20"
}

4. Stage 1 — Document Processing (PDF input)

PDFs are rasterized with PyMuPDF at the configured DPI. Even with run_ocr=False, the pipeline can fall back to the PDF text layer (pymupdf_text) when present — useful for born-digital forms.

from reportlab.pdfgen import canvas

pdf_path = DEMO / "sample_letter_of_guarantee.pdf"
c = canvas.Canvas(str(pdf_path))
c.setFont("Helvetica-Bold", 14)
c.drawString(72, 720, "LETTER OF GUARANTEE")
c.setFont("Helvetica", 11)
lines = [
    "First National Bank Lienholder Services",
    "This letter guarantees that the insurer reimbursement will pay the bank first.",
    "Claim Number: CLM-PDF-2024-77",
    "VIN: 1HGCM82633A004352",
    "Year: 2019",
    "Make: Toyota",
    "Model: Camry",
    "Payoff Amount: $3,100.00",
]
y = 690
for line in lines:
    c.drawString(72, y, line)
    y -= 18
c.showPage()
c.setFont("Helvetica", 11)
c.drawString(72, 720, "Page 2 — supporting payoff schedule (attachment).")
c.drawString(72, 700, "Account Ref: BANK-998877")
c.save()
print(f"wrote {pdf_path}")

processed_pdf = process_document_input(
    record_id="walkthrough-pdf",
    pdf_path=pdf_path,
    cache_dir=CACHE / "pages",
    application="salvage_claims",
    dpi=DPI,
    run_ocr=RUN_OCR,
)

print(f"source_kind: {processed_pdf.source_kind}")
print(f"n_pages:     {len(processed_pdf.pages)}")
for p in processed_pdf.pages:
    show_page_image(p, title=f"PDF page {p.page_index}")
    print(f"  ocr_backend={p.ocr_backend!r}  text_chars={len(p.text)}")

display(Markdown("### PDF full_text (text-layer / OCR)"))
print(processed_pdf.full_text)

wrote /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/sample_letter_of_guarantee.pdf
source_kind: pdf
n_pages:     2

PDF page 0 — walkthrough-pdf__af5ff734cb6ce3d7__page_000.png (1654×2339, dpi=200, ocr=pymupdf_text)

  ocr_backend='pymupdf_text'  text_chars=253

PDF page 1 — walkthrough-pdf__af5ff734cb6ce3d7__page_001.png (1654×2339, dpi=200, ocr=pymupdf_text)

  ocr_backend='pymupdf_text'  text_chars=74

PDF full_text (text-layer / OCR)

LETTER OF GUARANTEE
First National Bank Lienholder Services
This letter guarantees that the insurer reimbursement will pay the bank first.
Claim Number: CLM-PDF-2024-77
VIN: 1HGCM82633A004352
Year: 2019
Make: Toyota
Model: Camry
Payoff Amount: $3,100.00

Page 2 — supporting payoff schedule (attachment).
Account Ref: BANK-998877

5. Stage 2 — Document Classification

Classification is page-first, then aggregated:

classify_page_text — keyword / alias scoring per class (backend heuristic_text)
Optional ViT when vit_model_dir has matching labels (blended 50/50 with text)
aggregate_page_predictions — confidence-weighted majority vote → ClassificationResult

Below we score every fixture document with the matching application profile.

classify_rows = []
for row in fixture_rows:
    profile = load_application(row["application"])
    pred = classify_page_text(row["text"], profile)
    classify_rows.append(
        {
            "record_id": row["record_id"],
            "gold": row["document_type"],
            "pred": pred.label,
            "confidence": round(pred.confidence, 3),
            "correct": pred.label == row["document_type"],
            "top_scores": {
                k: round(v, 3)
                for k, v in sorted(pred.scores.items(), key=lambda kv: -kv[1])[:3]
            },
            "backend": pred.backend,
        }
    )

cls_df = pd.DataFrame(classify_rows)
display(cls_df)
print(f"accuracy on fixtures: {cls_df['correct'].mean():.0%}")

display(Markdown("### Per-page scores — Letter of Guarantee"))
log_page = classify_page_text(LOG_TEXT, salvage)
show_json(log_page, title="PageClassification")

	record_id	gold	pred	confidence	correct	top_scores	backend
0	med-hcfa-001	hcfa	hcfa	0.95	True	{'hcfa': 1.0, 'ub04': 0.111, 'other': 0.0}	heuristic_text
1	med-ub04-002	ub04	ub04	0.95	True	{'ub04': 1.0, 'hcfa': 0.0, 'other': 0.0}	heuristic_text
2	med-other-003	other	other	0.61	True	{'other': 0.35, 'hcfa': 0.0, 'ub04': 0.0}	heuristic_text
3	sal-log-001	log	log	0.82	True	{'log': 0.7, 'sales': 0.0, 'other': 0.0}	heuristic_text
4	sal-sales-002	sales	sales	0.95	True	{'sales': 1.2, 'log': 0.0, 'other': 0.0}	heuristic_text
5	sal-other-003	other	other	0.61	True	{'other': 0.35, 'log': 0.0, 'sales': 0.0}	heuristic_text

accuracy on fixtures: 100%

Per-page scores — Letter of Guarantee

PageClassification

{
  "page_index": 0,
  "label": "log",
  "confidence": 0.8200000000000001,
  "backend": "heuristic_text",
  "scores": {
    "log": 0.7,
    "sales": 0.0,
    "other": 0.0
  }
}

Document-level aggregation on the 2-page PDF

classify_document runs Stage 2 over every page of a ProcessedDocument and returns one document label.

pdf_classification = classify_document(processed_pdf, salvage)
show_json(pdf_classification, title="ClassificationResult (2-page PDF)")

page_df = pd.DataFrame(
    [
        {
            "page": p.page_index,
            "label": p.label,
            "confidence": round(p.confidence, 3),
            "backend": p.backend,
        }
        for p in pdf_classification.page_predictions
    ]
)
display(page_df)
print(
    f"document label={pdf_classification.label!r}  "
    f"confidence={pdf_classification.confidence:.3f}  "
    f"aggregation={pdf_classification.aggregation!r}"
)

ClassificationResult (2-page PDF)

{
  "label": "log",
  "confidence": 0.8200000000000001,
  "backend": "heuristic_text",
  "aggregation": "confidence_weighted_majority",
  "page_predictions": [
    {
      "page_index": 0,
      "label": "log",
      "confidence": 0.8200000000000001,
      "backend": "heuristic_text",
      "scores": {
        "log": 0.7,
        "sales": 0.0,
        "other": 0.0
      }
    },
    {
      "page_index": 1,
      "label": "log",
      "confidence": 0.46,
      "backend": "heuristic_text",
      "scores": {
        "log": 0.1,
        "sales": 0.0,
        "other": 0.0
      }
    }
  ],
  "flags": []
}

	page	label	confidence	backend
0	0	log	0.82	heuristic_text
1	1	log	0.46	heuristic_text

document label='log'  confidence=0.820  aggregation='confidence_weighted_majority'

6. Stage 2 — Prefer non-`other` on ties

Paper business rule (medical / salvage): when page votes tie between other and a concrete class, prefer the concrete class. Soft preference also applies when a non-other score is close to other.

tie_pages = [
    PageClassification(0, "other", 0.5, "heuristic_text", scores={"other": 0.5, "log": 0.0, "sales": 0.0}),
    PageClassification(1, "log", 0.5, "heuristic_text", scores={"log": 0.5, "other": 0.0, "sales": 0.0}),
]
tied = aggregate_page_predictions(tie_pages, salvage)

display(Markdown(
    f"Tied pages `other` vs `log` (both conf=0.5) → **`{tied.label}`** "
    f"(aggregation=`{tied.aggregation}`, flags={tied.flags})"
))
show_json(tied, title="aggregate_page_predictions on tie")
assert tied.label == "log", "prefer_non_other should break the tie toward log"

Tied pages other vs log (both conf=0.5) → log (aggregation=confidence_weighted_majority, flags=[‘low_confidence_classification’])

aggregate_page_predictions on tie

{
  "label": "log",
  "confidence": 0.5,
  "backend": "heuristic_text",
  "aggregation": "confidence_weighted_majority",
  "page_predictions": [
    {
      "page_index": 0,
      "label": "other",
      "confidence": 0.5,
      "backend": "heuristic_text",
      "scores": {
        "other": 0.5,
        "log": 0.0,
        "sales": 0.0
      }
    },
    {
      "page_index": 1,
      "label": "log",
      "confidence": 0.5,
      "backend": "heuristic_text",
      "scores": {
        "log": 0.5,
        "other": 0.0,
        "sales": 0.0
      }
    }
  ],
  "flags": [
    "low_confidence_classification"
  ]
}

7. Stage 3 — Information Extraction

Extraction is conditioned on the Stage 2 document type:

Regex / pattern heuristics (heuristic_extract) cover medical + salvage fields
Optional LayoutLM token classifier when models/extractor* weights exist
Missing expected fields (e.g. LOG without VIN, HCFA without name) lower confidence and set review flags

Field patterns live in src/docie/extract.py (FIELD_PATTERNS).

display(Markdown("### Heuristic extract — salvage LOG fields"))
salvage_fields = heuristic_extract(LOG_TEXT, salvage.extraction_fields)
display(pd.DataFrame(
    [{"field": k, "values": v, "primary": v[0] if v else None} for k, v in salvage_fields.items()]
))

medical = load_application("medical_bills")
display(Markdown("### Heuristic extract — medical HCFA fields"))
medical_fields = heuristic_extract(HCFA_TEXT, medical.extraction_fields)
display(pd.DataFrame(
    [{"field": k, "values": v, "primary": v[0] if v else None} for k, v in medical_fields.items()]
))

Heuristic extract — salvage LOG fields

	field	values	primary
0	claim_id	[CLM-2024-100200]	CLM-2024-100200
1	vin	[1HGCM82633A004352]	1HGCM82633A004352
2	year	[2018]	2018
3	make	[Honda]	Honda
4	model	[Accord]	Accord

Heuristic extract — medical HCFA fields

	field	values	primary
0	claim_id	[CLM-2024-551122]	CLM-2024-551122
1	name	[Jane Q Public]	Jane Q Public
2	dob	[03/14/1988]	03/14/1988
3	patient_id	[PID-778812]	PID-778812
4	address	[100 Oak Avenue, Madison WI 53703]	100 Oak Avenue, Madison WI 53703

Full Stage 3 API — `extract_information`

Pass the ProcessedDocument + predicted document_type so missing-field flags are application-aware.

log_classification = classify_document(processed_log, salvage)
log_extraction = extract_information(
    processed_log,
    salvage,
    document_type=log_classification.label,
)

show_json(log_extraction, title="ExtractionResult (LOG)")
print(
    f"backend={log_extraction.backend}  "
    f"document_type={log_extraction.document_type}  "
    f"confidence={log_extraction.confidence:.3f}  "
    f"flags={log_extraction.flags}"
)

# Contrast: a sparse "other" document should extract little and may flag review later
other_text = by_id["sal-other-003"]["text"]
processed_other = process_document_input(
    record_id="walkthrough-other",
    text=other_text,
    cache_dir=CACHE / "pages",
    application="salvage_claims",
    run_ocr=False,
)
other_cls = classify_document(processed_other, salvage)
other_ext = extract_information(
    processed_other, salvage, document_type=other_cls.label
)
display(Markdown(
    f"### Sparse towing invoice → class=`{other_cls.label}` "
    f"(conf={other_cls.confidence:.3f}), fields={other_ext.fields_flat}"
))

ExtractionResult (LOG)

{
  "fields": {
    "claim_id": [
      "CLM-2024-100200"
    ],
    "vin": [
      "1HGCM82633A004352"
    ],
    "year": [
      "2018"
    ],
    "make": [
      "Honda"
    ],
    "model": [
      "Accord"
    ]
  },
  "fields_flat": {
    "claim_id": "CLM-2024-100200",
    "vin": "1HGCM82633A004352",
    "year": "2018",
    "make": "Honda",
    "model": "Accord"
  },
  "backend": "heuristic",
  "document_type": "log",
  "confidence": 0.85,
  "flags": [
    "extract_heuristic"
  ],
  "page_index": 0
}

backend=heuristic  document_type=log  confidence=0.850  flags=['extract_heuristic']

Sparse towing invoice → class=`other` (conf=0.805), fields={‘claim_id’: None, ‘vin’: None, ‘year’: None, ‘make’: None, ‘model’: None}

8. Stage 4 — Output aggregation & human-review routing

aggregate_prediction merges Stage 2 + Stage 3 and decides needs_human_review when:

classification or extraction confidence < review_confidence_threshold (default 0.55)
flags like missing_expected_field*, low_confidence*, empty_document, ocr_empty_pages, ocr_unavailable

DociePrediction exposes two shapes:

Method	Use
`.to_dict()`	Full audit trail (pages, timings, backends, flags)
`.response_payload()`	Compact REST / claim-center update (paper §VI)

prediction_manual = aggregate_prediction(
    processed=processed_log,
    classification=log_classification,
    extraction=log_extraction,
    profile=salvage,
    stage_timings_ms={
        "document_processing": 0.0,
        "document_classification": 0.0,
        "information_extraction": 0.0,
    },
)

print(f"needs_human_review: {prediction_manual.needs_human_review}")
print(f"flags: {prediction_manual.flags}")
print()
show_json(prediction_manual.response_payload(), title="response_payload() — compact downstream shape")
show_json(
    {
        "document_type": prediction_manual.classification.label,
        "fields": prediction_manual.extraction.fields_flat,
        "processing": prediction_manual.processing,
        "flags": prediction_manual.flags,
    },
    title="Selected fields from to_dict()",
)

needs_human_review: False
flags: ['extract_heuristic']

response_payload() — compact downstream shape

{
  "record_id": "walkthrough-log",
  "application": "salvage_claims",
  "document_type": "log",
  "classification_confidence": 0.91,
  "fields": {
    "claim_id": "CLM-2024-100200",
    "vin": "1HGCM82633A004352",
    "year": "2018",
    "make": "Honda",
    "model": "Accord"
  },
  "extraction_confidence": 0.85,
  "needs_human_review": false,
  "flags": [
    "extract_heuristic"
  ]
}

Selected fields from to_dict()

{
  "document_type": "log",
  "fields": {
    "claim_id": "CLM-2024-100200",
    "vin": "1HGCM82633A004352",
    "year": "2018",
    "make": "Honda",
    "model": "Accord"
  },
  "processing": {
    "source_kind": "text",
    "source_path": null,
    "n_pages": 1,
    "dpi": 200,
    "grayscale": true,
    "ocr_backends": [
      "rendered_text"
    ],
    "page_image_paths": [
      "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/cache/pages/walkthrough-log__5750df1a2104a5cc__page_000.png"
    ]
  },
  "flags": [
    "extract_heuristic"
  ]
}

9. Full orchestrator — `DociePipeline` (salvage LOG)

DociePipeline.process runs the fixed Fig. 1 stage order and records millisecond timings:

document_processing
document_classification
information_extraction
output_aggregation

It also calls push_downstream (no-op unless you pass a downstream_sink).

pipe_salvage = DociePipeline(
    application="salvage_claims",
    cfg=cfg,
    cache_dir=CACHE / "pipeline_salvage",
    dpi=DPI,
    run_ocr=RUN_OCR,
)

pred_log = pipe_salvage.process(
    record_id="e2e-salvage-log",
    text=LOG_TEXT,
    metadata={"demo": "docie_walkthrough"},
)

timings = pred_log.stage_timings_ms
assert list(timings) == [
    "document_processing",
    "document_classification",
    "information_extraction",
    "output_aggregation",
], "Fig. 1 stage order contract"

display(Markdown("### Stage timings (ms)"))
timing_df = pd.DataFrame([{"stage": k, "ms": v} for k, v in timings.items()])
display(timing_df)

fig, ax = plt.subplots(figsize=(7, 3.2))
ax.barh(timing_df["stage"][::-1], timing_df["ms"][::-1], color="#2c6e49")
ax.set_xlabel("milliseconds")
ax.set_title("DICIE stage timings — salvage LOG")
fig.tight_layout()
plt.show()

display(Markdown(
    f"**Result:** `{pred_log.classification.label}` "
    f"(conf={pred_log.classification.confidence:.3f}) · "
    f"fields={pred_log.extraction.fields_flat} · "
    f"review={pred_log.needs_human_review}"
))
show_json(pred_log.response_payload(), title="End-to-end response_payload")

# Persist full prediction for inspection
out_log = DEMO / "e2e_salvage_log.json"
out_log.write_text(json.dumps(pred_log.to_dict(), indent=2, default=str), encoding="utf-8")
print(f"wrote {out_log}")

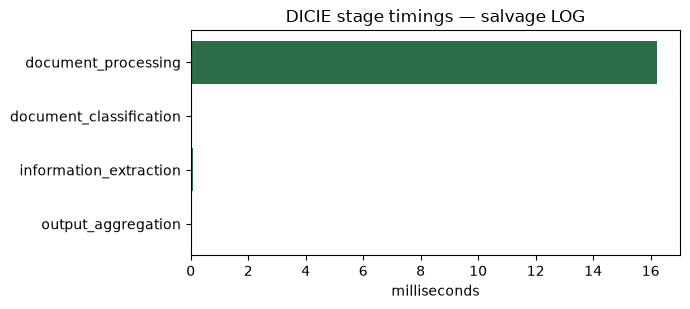

Stage timings (ms)

	stage	ms
0	document_processing	16.21
1	document_classification	0.06
2	information_extraction	0.07
3	output_aggregation	0.01

Result: log (conf=0.910) · fields={‘claim_id’: ‘CLM-2024-100200’, ‘vin’: ‘1HGCM82633A004352’, ‘year’: ‘2018’, ‘make’: ‘Honda’, ‘model’: ‘Accord’} · review=False

End-to-end response_payload

{
  "record_id": "e2e-salvage-log",
  "application": "salvage_claims",
  "document_type": "log",
  "classification_confidence": 0.91,
  "fields": {
    "claim_id": "CLM-2024-100200",
    "vin": "1HGCM82633A004352",
    "year": "2018",
    "make": "Honda",
    "model": "Accord"
  },
  "extraction_confidence": 0.85,
  "needs_human_review": false,
  "flags": [
    "extract_heuristic"
  ]
}

wrote /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/e2e_salvage_log.json

Convenience API — `process_document`

One-liner that returns a plain dict (same shape as DociePrediction.to_dict()).

result_dict = process_document(
    application="salvage_claims",
    record_id="convenience-log",
    text=LOG_TEXT,
    cfg=cfg,
    run_ocr=RUN_OCR,
)
print("keys:", sorted(result_dict.keys()))
print("document_type:", result_dict["document_type"])
print("fields:", result_dict["fields"])
print("stage_timings_ms:", result_dict["stage_timings_ms"])

keys: ['application', 'classification', 'document_type', 'extraction', 'fields', 'flags', 'needs_human_review', 'processing', 'record_id', 'stage_timings_ms']
document_type: log
fields: {'claim_id': 'CLM-2024-100200', 'vin': '1HGCM82633A004352', 'year': '2018', 'make': 'Honda', 'model': 'Accord'}
stage_timings_ms: {'document_processing': 15.06, 'document_classification': 0.05, 'information_extraction': 0.08, 'output_aggregation': 0.04}

10. Full orchestrator — medical bills (HCFA)

Same chain, different application profile. Labels become hcfa / ub04 / other; extraction targets shift to claimant demographics.

pipe_medical = DociePipeline(
    application="medical_bills",
    cfg=cfg,
    cache_dir=CACHE / "pipeline_medical",
    dpi=DPI,
    run_ocr=RUN_OCR,
)

med_preds = []
for row in fixture_rows:
    if row["application"] != "medical_bills":
        continue
    pred = pipe_medical.process(record_id=row["record_id"], text=row["text"])
    med_preds.append(
        {
            "record_id": row["record_id"],
            "gold": row["document_type"],
            "pred": pred.classification.label,
            "cls_conf": round(pred.classification.confidence, 3),
            "ext_conf": round(pred.extraction.confidence, 3),
            "claim_id": pred.extraction.fields_flat.get("claim_id"),
            "name": pred.extraction.fields_flat.get("name"),
            "dob": pred.extraction.fields_flat.get("dob"),
            "patient_id": pred.extraction.fields_flat.get("patient_id"),
            "review": pred.needs_human_review,
            "flags": ", ".join(pred.flags) or "—",
        }
    )

med_df = pd.DataFrame(med_preds)
display(med_df)

pred_hcfa = pipe_medical.process(record_id="e2e-hcfa", text=HCFA_TEXT)
hcfa_paths = pred_hcfa.processing.get("page_image_paths") or []
if hcfa_paths and Path(hcfa_paths[0]).exists():
    display(Markdown(f"**HCFA rendered page** — `{Path(hcfa_paths[0]).name}`"))
    display(IPyImage(filename=hcfa_paths[0], width=520))
show_json(pred_hcfa.response_payload(), title="Medical HCFA response_payload")

	record_id	gold	pred	cls_conf	ext_conf	claim_id	name	dob	patient_id	review	flags
0	med-hcfa-001	hcfa	hcfa	0.975	0.85	CLM-2024-551122	Jane Q Public	03/14/1988	PID-778812	False	extract_heuristic
1	med-ub04-002	ub04	ub04	0.975	0.85	CLM-2024-660033	John A Smith	1990-07-22	MRN-990011	False	extract_heuristic
2	med-other-003	other	other	0.805	0.45	NaN	Alex Rivera	NaN	NaN	True	extract_heuristic, low_confidence_extraction, ...

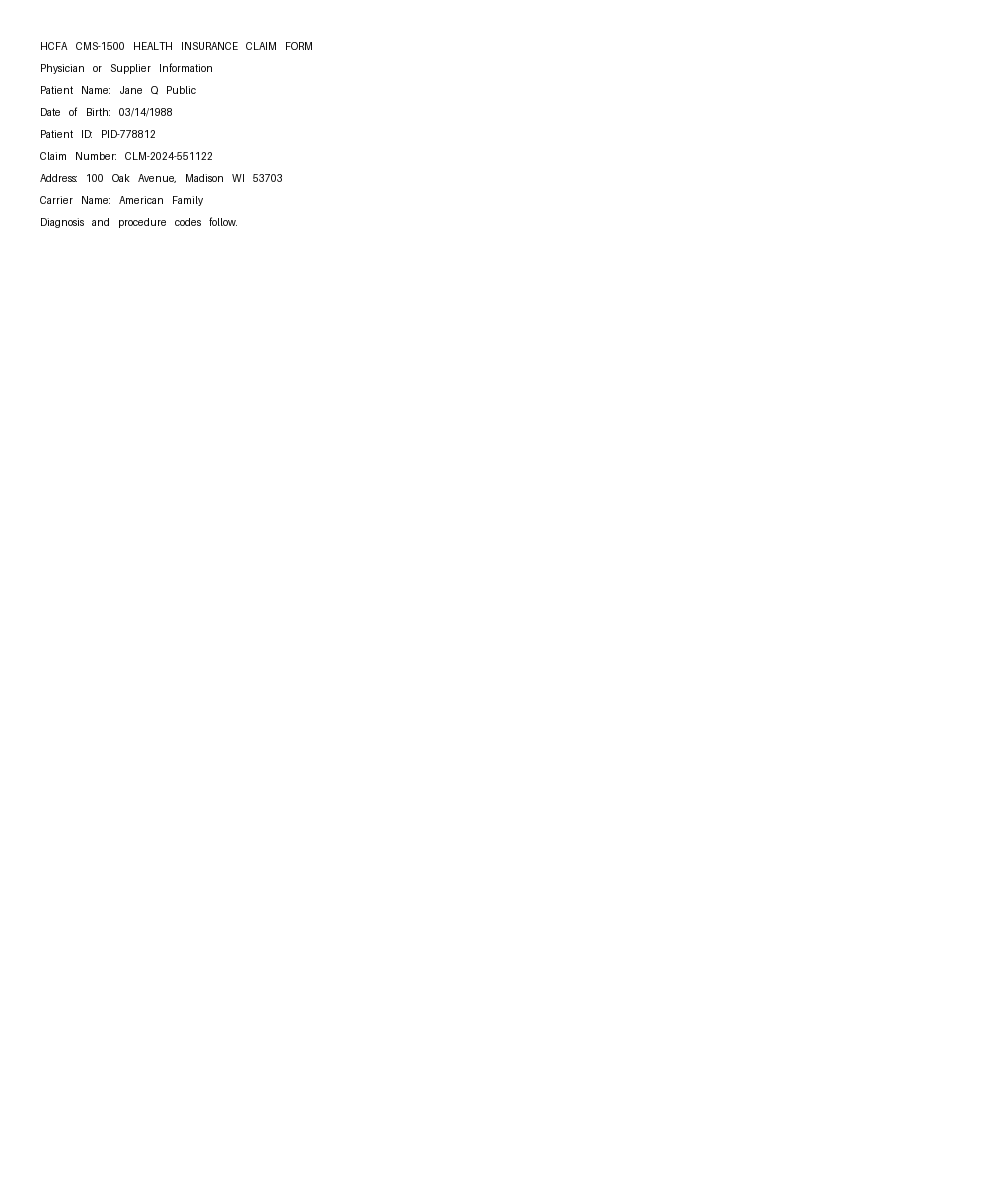

HCFA rendered page — e2e-hcfa__5e557de49cedc9e1__page_000.png

Medical HCFA response_payload

{
  "record_id": "e2e-hcfa",
  "application": "medical_bills",
  "document_type": "hcfa",
  "classification_confidence": 0.975,
  "fields": {
    "claim_id": "CLM-2024-551122",
    "name": "Jane Q Public",
    "dob": "03/14/1988",
    "patient_id": "PID-778812",
    "address": "100 Oak Avenue, Madison WI 53703"
  },
  "extraction_confidence": 0.85,
  "needs_human_review": false,
  "flags": [
    "extract_heuristic"
  ]
}

11. Batch processing — `run_file`

For JSONL corpora, run_file (also used by python -m src.docie --in …) writes:

Artifact	Contents
`{out}.jsonl`	Full prediction per row
`{out}.summary.json`	Counts, average confidences, stage chain
`{stem}.human_review.jsonl`	Compact payloads for rows needing review
provenance log	Appended under `cfg.provenance_log_path`

Accepted row keys: record_id / claim_id, pdf_path, image_path, source_path / path / file_path, text.

The shared fixture mixes medical + salvage rows. Below we filter to the matching application before each batch so classification stays on-taxonomy (running salvage_claims over HCFA text would correctly fall through to other).

# Write application-filtered JSONL inputs for clean batch demos
salvage_in = DEMO / "input_salvage.jsonl"
medical_in = DEMO / "input_medical.jsonl"
salvage_in.write_text(
    "\n".join(json.dumps(r) for r in fixture_rows if r["application"] == "salvage_claims") + "\n",
    encoding="utf-8",
)
medical_in.write_text(
    "\n".join(json.dumps(r) for r in fixture_rows if r["application"] == "medical_bills") + "\n",
    encoding="utf-8",
)

batch_out = DEMO / "batch_salvage.jsonl"
path = run_file(
    salvage_in,
    batch_out,
    application="salvage_claims",
    cfg=cfg,
    run_ocr=RUN_OCR,
)

batch_rows = load_jsonl(path)
summary = read_json(path.with_suffix(".summary.json"))
review_path = path.with_name(path.stem + ".human_review.jsonl")
review_rows = load_jsonl(review_path) if review_path.exists() else []

show_json(summary, title="salvage batch summary")

batch_df = pd.DataFrame(
    [
        {
            "record_id": r["record_id"],
            "document_type": r["document_type"],
            "cls_conf": round(r["classification"]["confidence"], 3),
            "ext_conf": round(r["extraction"]["confidence"], 3),
            "fields": {k: v for k, v in r["fields"].items() if v},
            "review": r["needs_human_review"],
            "flags": r["flags"],
        }
        for r in batch_rows
    ]
)
display(batch_df)

print(f"predictions: {path}")
print(f"summary:     {path.with_suffix('.summary.json')}")
print(f"review queue ({len(review_rows)}): {review_path}")

label_counts = Counter(r["document_type"] for r in batch_rows)
fig, ax = plt.subplots(figsize=(5, 3))
ax.bar(list(label_counts.keys()), list(label_counts.values()), color="#1b4965")
ax.set_ylabel("count")
ax.set_title("Batch label distribution (salvage_claims)")
fig.tight_layout()
plt.show()

# Mirror for medical_bills
med_batch_out = DEMO / "batch_medical.jsonl"
med_path = run_file(
    medical_in,
    med_batch_out,
    application="medical_bills",
    cfg=cfg,
    run_ocr=RUN_OCR,
)
med_summary = read_json(med_path.with_suffix(".summary.json"))
show_json(med_summary, title="medical batch summary")
med_batch_df = pd.DataFrame(
    [
        {
            "record_id": r["record_id"],
            "document_type": r["document_type"],
            "cls_conf": round(r["classification"]["confidence"], 3),
            "fields": {k: v for k, v in r["fields"].items() if v},
            "review": r["needs_human_review"],
        }
        for r in load_jsonl(med_path)
    ]
)
display(med_batch_df)

salvage batch summary

{
  "n": 3,
  "application": "salvage_claims",
  "chain": [
    "document_processing",
    "document_classification",
    "information_extraction",
    "output_aggregation"
  ],
  "needs_human_review": 1,
  "label_counts": {
    "log": 1,
    "sales": 1,
    "other": 1
  },
  "avg_classification_confidence": 0.8966666666666666,
  "avg_extraction_confidence": 0.6166666666666667
}

	record_id	document_type	cls_conf	ext_conf	fields	review	flags
0	sal-log-001	log	0.910	0.85	{'claim_id': 'CLM-2024-100200', 'vin': '1HGCM8...	False	[extract_heuristic]
1	sal-sales-002	sales	0.975	0.75	{'vin': '1FADP3F20EL123456', 'year': '2015', '...	False	[extract_heuristic]
2	sal-other-003	other	0.805	0.25	{}	True	[extract_heuristic, low_confidence_extraction,...

predictions: /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/batch_salvage.jsonl
summary:     /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/batch_salvage.summary.json
review queue (1): /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/docie/batch_salvage.human_review.jsonl

medical batch summary

{
  "n": 3,
  "application": "medical_bills",
  "chain": [
    "document_processing",
    "document_classification",
    "information_extraction",
    "output_aggregation"
  ],
  "needs_human_review": 1,
  "label_counts": {
    "hcfa": 1,
    "ub04": 1,
    "other": 1
  },
  "avg_classification_confidence": 0.9183333333333333,
  "avg_extraction_confidence": 0.7166666666666667
}

	record_id	document_type	cls_conf	fields	review
0	med-hcfa-001	hcfa	0.975	{'claim_id': 'CLM-2024-551122', 'name': 'Jane ...	False
1	med-ub04-002	ub04	0.975	{'claim_id': 'CLM-2024-660033', 'name': 'John ...	False
2	med-other-003	other	0.805	{'name': 'Alex Rivera'}	True

PDF end-to-end through the orchestrator

Reuse the 2-page PDF from Stage 1 to show the full chain on a file path (not just text).

pred_pdf = pipe_salvage.process(
    record_id="e2e-pdf-log",
    pdf_path=pdf_path,
)

display(Markdown(
    f"PDF → **{pred_pdf.classification.label}** "
    f"(conf={pred_pdf.classification.confidence:.3f}, "
    f"backend={pred_pdf.classification.backend}) · "
    f"n_pages={pred_pdf.processing['n_pages']} · "
    f"ocr={pred_pdf.processing['ocr_backends']}"
))
show_json(pred_pdf.response_payload(), title="PDF response_payload")
show_json(pred_pdf.extraction.fields_flat, title="Extracted fields")

PDF → log (conf=0.820, backend=heuristic_text) · n_pages=2 · ocr=[‘pymupdf_text’]

PDF response_payload

{
  "record_id": "e2e-pdf-log",
  "application": "salvage_claims",
  "document_type": "log",
  "classification_confidence": 0.8200000000000001,
  "fields": {
    "claim_id": "CLM-PDF-2024-77",
    "vin": "1HGCM82633A004352",
    "year": "2019",
    "make": "Toyota",
    "model": "Camry"
  },
  "extraction_confidence": 0.85,
  "needs_human_review": false,
  "flags": [
    "extract_heuristic"
  ]
}

Extracted fields

{
  "claim_id": "CLM-PDF-2024-77",
  "vin": "1HGCM82633A004352",
  "year": "2019",
  "make": "Toyota",
  "model": "Camry"
}

12. Downstream sink & optional model backends

Downstream sink

Pass a callable to DociePipeline(..., downstream_sink=fn). Every process call will invoke push_downstream, which delivers response_payload() to your webhook / queue / claim-center updater.

sunk: list[dict] = []

pipe_with_sink = DociePipeline(
    application="salvage_claims",
    cfg=cfg,
    cache_dir=CACHE / "pipeline_sink",
    run_ocr=RUN_OCR,
    downstream_sink=sunk.append,
)
pred_sink = pipe_with_sink.process(record_id="sink-demo", text=LOG_TEXT)
payload = push_downstream(pred_sink)  # also returns the payload without a sink

print(f"sink received {len(sunk)} payload(s)")
show_json(sunk[0], title="Payload delivered to downstream_sink")
assert sunk[0]["document_type"] == "log"
assert payload["fields"]["vin"]

sink received 1 payload(s)

Payload delivered to downstream_sink

{
  "record_id": "sink-demo",
  "application": "salvage_claims",
  "document_type": "log",
  "classification_confidence": 0.91,
  "fields": {
    "claim_id": "CLM-2024-100200",
    "vin": "1HGCM82633A004352",
    "year": "2018",
    "make": "Honda",
    "model": "Accord"
  },
  "extraction_confidence": 0.85,
  "needs_human_review": false,
  "flags": [
    "extract_heuristic"
  ]
}

Optional neural backends

Backend	How to enable	Notes
ViT page classifier	`DociePipeline(..., vit_model_dir=Path(...))`	Needs `config.json` + labels intersecting the app taxonomy; blended with heuristics
LayoutLM extractor	weights under `models/extractor` or `models/extractor_smoke`	Auto-discovered; field names must match `extraction_fields`
OCR	`RUN_OCR=True` + `pip install -e ".[ocr]"` + Tesseract	Word boxes feed LayoutLM-style extractors

The cell below reports what is available locally (smoke weights from the other pipeline notebook do not match medical/salvage labels, so heuristics remain the active path).

candidates = [
    cfg.models_dir / "extractor",
    cfg.models_dir / "extractor_smoke",
    REPO_ROOT / "data" / "notebook_demo" / "models" / "extractor_smoke",
    REPO_ROOT / "data" / "notebook_demo" / "models" / "classifier_smoke",
]

avail = []
for path in candidates:
    cfg_json = path / "config.json"
    labels = path / "label2id.json"
    avail.append(
        {
            "path": str(path.relative_to(REPO_ROOT)) if path.is_relative_to(REPO_ROOT) else str(path),
            "exists": path.exists(),
            "has_config": cfg_json.exists(),
            "has_label2id": labels.exists(),
            "label_sample": (
                list(json.loads(labels.read_text()).keys())[:6] if labels.exists() else []
            ),
        }
    )

display(pd.DataFrame(avail))
print(
    "Default DociePipeline extractor_dir:",
    pipe_salvage.extractor_dir,
)
print(
    "Heuristic path is sufficient for this walkthrough; "
    "point vit_model_dir / extractor_dir at matching weights to activate neural backends."
)

	path	exists	has_config	has_label2id	label_sample
0	models/extractor	False	False	False	[]
1	models/extractor_smoke	False	False	False	[]
2	data/notebook_demo/models/extractor_smoke	True	True	True	[O, B-claim_id, I-claim_id, B-policy_number, I...
3	data/notebook_demo/models/classifier_smoke	True	True	True	[application_commercial, application_personal,...

Default DociePipeline extractor_dir: None
Heuristic path is sufficient for this walkthrough; point vit_model_dir / extractor_dir at matching weights to activate neural backends.

Optional — FastAPI serve shape

Not started from this notebook (keeps the walkthrough offline), but the paper §VI serving surface is:

pip install -e ".[serve]"
python -m src.docie.serve --application salvage_claims --port 8080

Endpoint	Body
`GET /health`	status + available applications
`POST /v1/predict`	multipart file + `application_name`
`POST /v1/predict/text`	JSON `{text, application, record_id}`

CLI one-shot (same orchestrator as this notebook):

python -m src.docie --application salvage_claims --text "LETTER OF GUARANTEE..." --response-only
python -m src.docie --application medical_bills --pdf path/to/bill.pdf
python -m src.docie --application salvage_claims \
  --in tests/fixtures/sample_docie_documents.jsonl \
  --out data/pipeline/docie/salvage_demo.jsonl

13. DICIE vs the memo-chain orchestrator

This repo has two inference paths. Use the table below to choose:

Concern	`src/docie/` (this notebook)	`src/pipeline/`
Ordering	process → classify → extract → respond	markdown → classify → extract → vision → summarize
Primary signal	page images + OCR	structured markdown for LLM context
Applications	medical bills, salvage claims (+ acord)	ACORD intake + adjuster memo
Output	classification + fields (+ review flag)	classification + fields + memo
Keys / GPU	none for heuristics	OpenRouter etc. for LLM stages

See notebooks/pipeline_walkthrough.ipynb for the markdown / training / memo path.

14. Recap — what this walkthrough exercised

Loaded application profiles from taxonomy YAML
Inspected the six-document fixture corpus
Ran Stage 1 on text (rendered page PNG) and a 2-page PDF
Classified pages with heuristics and aggregated with prefer-non-other
Extracted medical + salvage fields via heuristic_extract / extract_information
Aggregated into DociePrediction with review routing + dual payload shapes
Drove the full DociePipeline for salvage LOG and medical HCFA/UB04/other
Batched JSONL via run_file (predictions + summary + human-review queue)
Demonstrated a downstream sink and inspected optional model weight paths

All demo artifacts land under:

artifacts = sorted(p for p in DEMO.rglob("*") if p.is_file())
art_df = pd.DataFrame(
    [
        {
            "path": str(p.relative_to(REPO_ROOT)),
            "kb": round(p.stat().st_size / 1024, 1),
        }
        for p in artifacts
    ]
)
display(art_df)
print(f"{len(art_df)} files under {DEMO.relative_to(REPO_ROOT)}")

display(Markdown(
    "### Next steps\n"
    "- Point `vit_model_dir` / `extractor_dir` at application-matched weights\n"
    "- Enable `RUN_OCR = True` for scanned page images\n"
    "- Serve with `python -m src.docie.serve` for the REST surface\n"
    "- Read `docs/docie_pipeline.md` for production CLI recipes"
))

	path	kb
0	data/notebook_demo/docie/batch_medical.human_r...	0.4
1	data/notebook_demo/docie/batch_medical.jsonl	4.4
2	data/notebook_demo/docie/batch_medical.summary...	0.4
3	data/notebook_demo/docie/batch_salvage.human_r...	0.4
4	data/notebook_demo/docie/batch_salvage.jsonl	4.1
5	data/notebook_demo/docie/batch_salvage.summary...	0.4
6	data/notebook_demo/docie/cache/pages/walkthrou...	18.2
7	data/notebook_demo/docie/cache/pages/walkthrou...	12.7
8	data/notebook_demo/docie/cache/pages/walkthrou...	71.4
9	data/notebook_demo/docie/cache/pages/walkthrou...	33.1
10	data/notebook_demo/docie/cache/pipeline_medica...	19.9
11	data/notebook_demo/docie/cache/pipeline_medica...	19.9
12	data/notebook_demo/docie/cache/pipeline_medica...	13.8
13	data/notebook_demo/docie/cache/pipeline_medica...	17.6
14	data/notebook_demo/docie/cache/pipeline_salvag...	71.4
15	data/notebook_demo/docie/cache/pipeline_salvag...	33.1
16	data/notebook_demo/docie/cache/pipeline_salvag...	18.2
17	data/notebook_demo/docie/cache/pipeline_sink/p...	18.2
18	data/notebook_demo/docie/e2e_salvage_log.json	1.9
19	data/notebook_demo/docie/input_medical.jsonl	1.0
20	data/notebook_demo/docie/input_salvage.jsonl	0.9
21	data/notebook_demo/docie/sample_letter_of_guar...	2.3

22 files under data/notebook_demo/docie

Next steps

Point vit_model_dir / extractor_dir at application-matched weights
Enable RUN_OCR = True for scanned page images
Serve with python -m src.docie.serve for the REST surface
Read docs/docie_pipeline.md for production CLI recipes
