RVL-CDIP SQL queries + recreation sampling

Queryable walkthrough over the local aharley/rvl_cdip SQLite index (.venv/rvl_cdip/rvl_cdip.db), then a seeded stratified draw of 60–70 documents from each of the 16 classes (label ids 0–15) for the recreation experiment.

This notebook completes the sampling task: it writes a JSONL sample set, a machine-readable manifest, and a per-class count table under data/notebook_demo/rvl_cdip_recreation/.

NotePrerequisites
python -m src.rvl_cdip build   # ~17 MB labels → ~400k SQL rows (idempotent)

Images (rvl-cdip.tar.gz, ~38 GB) are optional. Sampling uses label index rows; image_abspath stays null until you opt into image download.

Related docs: RVL-CDIP SQL Index · CLI python -m src.rvl_cdip --help

1. Setup

from __future__ import annotations

import json
import logging
import random
import sys
from collections import Counter
from pathlib import Path

import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import Markdown, display

CWD = Path.cwd().resolve()
# Walk up from docs/notebooks/ (or notebooks/) until pyproject.toml is found.
REPO_ROOT = next(
    (p for p in (CWD, *CWD.parents) if (p / "pyproject.toml").exists()),
    None,
)
assert REPO_ROOT is not None, f"Could not find repo root from {CWD}"
if str(REPO_ROOT) not in sys.path:
    sys.path.insert(0, str(REPO_ROOT))

from src.rvl_cdip import LABEL_NAMES, RvlCdipStore, default_db_path
from src.utils.io import write_json, write_jsonl

logging.basicConfig(level=logging.INFO, format="%(levelname)s %(name)s: %(message)s")

DEMO = REPO_ROOT / "data" / "notebook_demo" / "rvl_cdip_recreation"
DEMO.mkdir(parents=True, exist_ok=True)

# --- Recreation knobs ---
SEED = 42
N_PER_CLASS = 65  # choose any integer in [60, 70]
assert 60 <= N_PER_CLASS <= 70, "N_PER_CLASS must be between 60 and 70 inclusive"
# None = sample across train/test/validation; or e.g. "train"
SPLIT_FILTER: str | None = None

print(f"repo:     {REPO_ROOT}")
print(f"db:       {default_db_path()}")
print(f"demo out: {DEMO}")
print(f"SEED={SEED}  N_PER_CLASS={N_PER_CLASS}  SPLIT_FILTER={SPLIT_FILTER!r}")
print(f"classes:  {len(LABEL_NAMES)} → {list(enumerate(LABEL_NAMES))}")
repo:     /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer
db:       /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/.venv/rvl_cdip/rvl_cdip.db
demo out: /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/rvl_cdip_recreation
SEED=42  N_PER_CLASS=65  SPLIT_FILTER=None
classes:  16 → [(0, 'letter'), (1, 'form'), (2, 'email'), (3, 'handwritten'), (4, 'advertisement'), (5, 'scientific report'), (6, 'scientific publication'), (7, 'specification'), (8, 'file folder'), (9, 'news article'), (10, 'budget'), (11, 'invoice'), (12, 'presentation'), (13, 'questionnaire'), (14, 'resume'), (15, 'memo')]

2. Open the SQL index (build if empty)

RvlCdipStore() opens .venv/rvl_cdip/rvl_cdip.db. If the documents table is empty, build_from_labels() downloads the split label files (~17 MB) and ingests all ~400k rows.

store = RvlCdipStore()
summary = store.summary()
print(f"documents indexed: {summary['documents']:,}")
print(f"with image paths:  {summary['with_image_abspath']:,}")
print(f"built_at:          {summary.get('built_at')}")
print(f"dataset_id:        {summary.get('dataset_id')}")

if summary["documents"] == 0:
    print("Index empty — building from Hub label files (safe; no 38 GB archive)…")
    stats = store.build_from_labels()
    summary = store.summary()
    print("build stats:", stats)
    print(f"documents indexed: {summary['documents']:,}")

assert summary["documents"] > 0, (
    "RVL-CDIP index is empty. Run: python -m src.rvl_cdip build"
)

display(pd.DataFrame(summary["by_split"]))
display(pd.DataFrame(summary["by_label"]))
documents indexed: 400,000
with image paths:  0
built_at:          2026-07-23T04:26:11Z
dataset_id:        aharley/rvl_cdip
split n
0 test 40000
1 train 320000
2 validation 40000
label_id label n
0 0 letter 25000
1 1 form 25000
2 2 email 25000
3 3 handwritten 25000
4 4 advertisement 25000
5 5 scientific report 25000
6 6 scientific publication 25000
7 7 specification 25000
8 8 file folder 25000
9 9 news article 25000
10 10 budget 25000
11 11 invoice 25000
12 12 presentation 25000
13 13 questionnaire 25000
14 14 resume 25000
15 15 memo 25000

3. Showcase SQL queries

3a. Class catalog + counts

store.labels() and ad-hoc store.query(...) (SELECT-only).

labels_df = pd.DataFrame(store.labels())
display(labels_df)

by_label = store.query(
    """
    SELECT d.label_id, l.name AS label, COUNT(*) AS n
    FROM documents d
    JOIN labels l ON l.label_id = d.label_id
    GROUP BY d.label_id
    ORDER BY d.label_id
    """
)
display(pd.DataFrame(by_label))

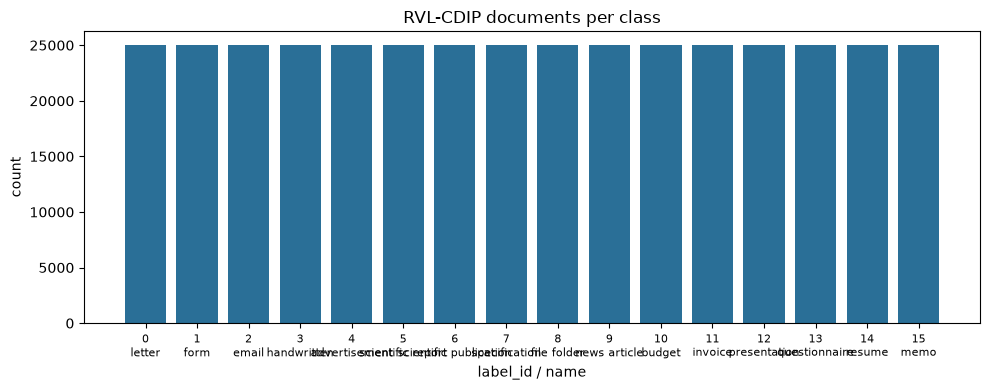

fig, ax = plt.subplots(figsize=(10, 4))
plot_df = pd.DataFrame(by_label)
ax.bar(plot_df["label_id"].astype(str) + "\n" + plot_df["label"], plot_df["n"], color="#2a6f97")
ax.set_title("RVL-CDIP documents per class")
ax.set_xlabel("label_id / name")
ax.set_ylabel("count")
plt.xticks(rotation=0, fontsize=8)
plt.tight_layout()
plt.show()
label_id name
0 0 letter
1 1 form
2 2 email
3 3 handwritten
4 4 advertisement
5 5 scientific report
6 6 scientific publication
7 7 specification
8 8 file folder
9 9 news article
10 10 budget
11 11 invoice
12 12 presentation
13 13 questionnaire
14 14 resume
15 15 memo
label_id label n
0 0 letter 25000
1 1 form 25000
2 2 email 25000
3 3 handwritten 25000
4 4 advertisement 25000
5 5 scientific report 25000
6 6 scientific publication 25000
7 7 specification 25000
8 8 file folder 25000
9 9 news article 25000
10 10 budget 25000
11 11 invoice 25000
12 12 presentation 25000
13 13 questionnaire 25000
14 14 resume 25000
15 15 memo 25000

3b. Split × label heatmap-style table

Useful to see whether a class is balanced across train / test / validation.

split_label = store.query(
    """
    SELECT d.split, d.label_id, l.name AS label, COUNT(*) AS n
    FROM documents d
    JOIN labels l ON l.label_id = d.label_id
    GROUP BY d.split, d.label_id
    ORDER BY d.split, d.label_id
    """,
    max_rows=200,
)
pivot = (
    pd.DataFrame(split_label)
    .pivot(index=["label_id", "label"], columns="split", values="n")
    .fillna(0)
    .astype(int)
)
display(pivot)

# Example: five invoice rows from train via the list helper
invoice_train = store.list_documents(split="train", label="invoice", limit=5)
display(pd.DataFrame(invoice_train))
split test train validation
label_id label
0 letter 2464 20106 2430
1 form 2506 19957 2537
2 email 2516 19954 2530
3 handwritten 2532 20034 2434
4 advertisement 2515 19963 2522
5 scientific report 2498 19994 2508
6 scientific publication 2572 19902 2526
7 specification 2472 19997 2531
8 file folder 2527 20022 2451
9 news article 2463 20011 2526
10 budget 2505 20010 2485
11 invoice 2477 19947 2576
12 presentation 2489 20043 2468
13 questionnaire 2435 20048 2517
14 resume 2537 20037 2426
15 memo 2492 19975 2533
document_id split label_id label image_relpath image_abspath source_line
0 train:imagesr/r/l/z/rlz20d00/521107137+-7140.tif train 11 invoice imagesr/r/l/z/rlz20d00/521107137+-7140.tif None 7
1 train:imagesk/k/w/s/kws90e00/91514628.tif train 11 invoice imagesk/k/w/s/kws90e00/91514628.tif None 91
2 train:imagesk/k/f/z/kfz64c00/91507726_7727.tif train 11 invoice imagesk/k/f/z/kfz64c00/91507726_7727.tif None 93
3 train:imagesq/q/i/z/qiz36c00/2070435354.tif train 11 invoice imagesq/q/i/z/qiz36c00/2070435354.tif None 101
4 train:imagesk/k/s/v/ksv13c00/92270027_0029.tif train 11 invoice imagesk/k/s/v/ksv13c00/92270027_0029.tif None 105

3c. Example filtered SELECTs

Same patterns as the CLI:

python -m src.rvl_cdip query "SELECT split, COUNT(*) AS n FROM documents GROUP BY split"
examples = {
    "rows_per_split": """
        SELECT split, COUNT(*) AS n
        FROM documents
        GROUP BY split
        ORDER BY split
    """,
    "handwritten_train_sample": """
        SELECT d.document_id, d.split, d.label_id, l.name AS label, d.image_relpath
        FROM documents d
        JOIN labels l ON l.label_id = d.label_id
        WHERE d.label_id = 3 AND d.split = 'train'
        ORDER BY d.source_line
        LIMIT 5
    """,
    "memo_vs_letter": """
        SELECT l.name AS label, d.split, COUNT(*) AS n
        FROM documents d
        JOIN labels l ON l.label_id = d.label_id
        WHERE d.label_id IN (0, 15)
        GROUP BY l.name, d.split
        ORDER BY l.name, d.split
    """,
}

for name, sql in examples.items():
    print(f"\n=== {name} ===")
    display(pd.DataFrame(store.query(sql)))

=== rows_per_split ===
split n
0 test 40000
1 train 320000
2 validation 40000

=== handwritten_train_sample ===
document_id split label_id label image_relpath
0 train:imageso/o/e/x/oex80d00/522787731+-7732.tif train 3 handwritten imageso/o/e/x/oex80d00/522787731+-7732.tif
1 train:imagesn/n/t/y/nty14d00/507705676.tif train 3 handwritten imagesn/n/t/y/nty14d00/507705676.tif
2 train:imageso/o/v/q/ovq40d00/517303299+-3300.tif train 3 handwritten imageso/o/v/q/ovq40d00/517303299+-3300.tif
3 train:imagese/e/j/k/ejk41d00/515625855+-5858.tif train 3 handwritten imagese/e/j/k/ejk41d00/515625855+-5858.tif
4 train:imagesj/j/q/a/jqa60d00/517515626+-5627.tif train 3 handwritten imagesj/j/q/a/jqa60d00/517515626+-5627.tif

=== memo_vs_letter ===
label split n
0 letter test 2464
1 letter train 20106
2 letter validation 2430
3 memo test 2492
4 memo train 19975
5 memo validation 2533

4. Recreation sample — 60–70 random docs per class (0–15)

For each label_id in 0..15:

  1. Pull candidate rows with SQL (WHERE label_id = ?, optional split filter)
  2. Draw N_PER_CLASS with a seeded random.Random(SEED) (reproducible; SQLite ORDER BY RANDOM() is not seedable)
  3. Tag rows with seed / n_per_class metadata

Default N_PER_CLASS = 65 (midpoint of 60–70). Change the knob in Setup and re-run from here.

def fetch_candidates(label_id: int, split: str | None = None) -> list[dict]:
    """All indexed rows for one class (optionally one split)."""
    if split:
        sql = """
            SELECT d.document_id, d.split, d.label_id, l.name AS label,
                   d.image_relpath, d.image_abspath, d.source_line
            FROM documents d
            JOIN labels l ON l.label_id = d.label_id
            WHERE d.label_id = ? AND d.split = ?
            """
        params: tuple = (label_id, split)
    else:
        sql = """
            SELECT d.document_id, d.split, d.label_id, l.name AS label,
                   d.image_relpath, d.image_abspath, d.source_line
            FROM documents d
            JOIN labels l ON l.label_id = d.label_id
            WHERE d.label_id = ?
            """
        params = (label_id,)
    # One class ≈ 25k rows — raise max_rows past the default 1000.
    return store.query(sql, params, max_rows=50_000)


def sample_recreation_set(
    *,
    n_per_class: int,
    seed: int,
    split: str | None = None,
) -> list[dict]:
    rng = random.Random(seed)
    out: list[dict] = []
    for label_id in range(len(LABEL_NAMES)):
        candidates = fetch_candidates(label_id, split=split)
        if len(candidates) < n_per_class:
            raise RuntimeError(
                f"label_id={label_id} ({LABEL_NAMES[label_id]!r}) has only "
                f"{len(candidates)} candidates; need {n_per_class}"
            )
        picked = rng.sample(candidates, n_per_class)
        for row in picked:
            item = dict(row)
            item["recreation_seed"] = seed
            item["n_per_class"] = n_per_class
            item["split_filter"] = split
            out.append(item)
    return out


samples = sample_recreation_set(
    n_per_class=N_PER_CLASS, seed=SEED, split=SPLIT_FILTER
)
sample_df = pd.DataFrame(samples)

print(f"total samples: {len(sample_df):,}  (expect {16 * N_PER_CLASS:,})")
counts = (
    sample_df.groupby(["label_id", "label"], sort=True)
    .size()
    .rename("n")
    .reset_index()
)
display(counts)
display(sample_df["split"].value_counts().rename("n").to_frame())
display(sample_df.head(8))

# Hard checks — notebook "completes" only if these pass
assert len(sample_df) == 16 * N_PER_CLASS
assert set(sample_df["label_id"]) == set(range(16))
assert (counts["n"] == N_PER_CLASS).all()
assert sample_df["document_id"].is_unique
print("✓ stratified sample OK: exactly", N_PER_CLASS, "unique docs × 16 classes")
total samples: 1,040  (expect 1,040)
label_id label n
0 0 letter 65
1 1 form 65
2 2 email 65
3 3 handwritten 65
4 4 advertisement 65
5 5 scientific report 65
6 6 scientific publication 65
7 7 specification 65
8 8 file folder 65
9 9 news article 65
10 10 budget 65
11 11 invoice 65
12 12 presentation 65
13 13 questionnaire 65
14 14 resume 65
15 15 memo 65
n
split
train 824
validation 112
test 104
document_id split label_id label image_relpath image_abspath source_line recreation_seed n_per_class split_filter
0 test:imagesz/z/p/v/zpv93d00/508330972_50833097... test 0 letter imagesz/z/p/v/zpv93d00/508330972_508330974.tif None 13284 42 65 None
1 train:imagese/e/u/v/euv68e00/2001213893.tif train 0 letter imagese/e/u/v/euv68e00/2001213893.tif None 57555 42 65 None
2 train:imagesp/p/s/e/pse16c00/2071710123.tif train 0 letter imagesp/p/s/e/pse16c00/2071710123.tif None 13386 42 65 None
3 validation:imagesx/x/g/p/xgp60d00/522473908+-3... validation 0 letter imagesx/x/g/p/xgp60d00/522473908+-3908.tif None 28603 42 65 None
4 train:imagesp/p/a/z/paz81e00/01353637_01353639... train 0 letter imagesp/p/a/z/paz81e00/01353637_01353639.tif None 143445 42 65 None
5 train:imagesw/w/e/a/wea08e00/1003719841.tif train 0 letter imagesw/w/e/a/wea08e00/1003719841.tif None 127504 42 65 None
6 train:imagesh/h/r/s/hrs33c00/98798570_8573.tif train 0 letter imagesh/h/r/s/hrs33c00/98798570_8573.tif None 116510 42 65 None
7 train:imagesn/n/y/r/nyr28d00/2070602093_2100.tif train 0 letter imagesn/n/y/r/nyr28d00/2070602093_2100.tif None 72423 42 65 None
✓ stratified sample OK: exactly 65 unique docs × 16 classes

5. Export artifacts for the recreation experiment

Writes under data/notebook_demo/rvl_cdip_recreation/:

File Contents
recreation_samples.jsonl One sampled document per line
recreation_manifest.json Seed, n_per_class, counts, db path
recreation_counts.csv Per-class counts
samples_path = DEMO / "recreation_samples.jsonl"
manifest_path = DEMO / "recreation_manifest.json"
counts_path = DEMO / "recreation_counts.csv"

write_jsonl(samples_path, samples)
counts.to_csv(counts_path, index=False)

manifest = {
    "experiment": "rvl_cdip_recreation",
    "dataset_id": summary.get("dataset_id"),
    "db_path": summary.get("db_path"),
    "seed": SEED,
    "n_per_class": N_PER_CLASS,
    "n_classes": 16,
    "total_samples": len(samples),
    "split_filter": SPLIT_FILTER,
    "label_names": list(LABEL_NAMES),
    "counts_by_label_id": {
        int(r["label_id"]): int(r["n"]) for _, r in counts.iterrows()
    },
    "samples_path": str(samples_path.relative_to(REPO_ROOT)),
    "counts_path": str(counts_path.relative_to(REPO_ROOT)),
}
write_json(manifest_path, manifest)

print("wrote:", samples_path)
print("wrote:", manifest_path)
print("wrote:", counts_path)
display(Markdown(f"```json\n{json.dumps(manifest, indent=2)}\n```"))

# Reload check
reloaded = [json.loads(line) for line in samples_path.read_text().splitlines() if line.strip()]
assert len(reloaded) == len(samples)
assert Counter(r["label_id"] for r in reloaded) == Counter(
    {i: N_PER_CLASS for i in range(16)}
)
print("✓ export verified on disk")
wrote: /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/rvl_cdip_recreation/recreation_samples.jsonl
wrote: /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/rvl_cdip_recreation/recreation_manifest.json
wrote: /Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/data/notebook_demo/rvl_cdip_recreation/recreation_counts.csv
{
  "experiment": "rvl_cdip_recreation",
  "dataset_id": "aharley/rvl_cdip",
  "db_path": "/Users/morningstar/Desktop/Cold_Storage/smol-doc-analyzer/.venv/rvl_cdip/rvl_cdip.db",
  "seed": 42,
  "n_per_class": 65,
  "n_classes": 16,
  "total_samples": 1040,
  "split_filter": null,
  "label_names": [
    "letter",
    "form",
    "email",
    "handwritten",
    "advertisement",
    "scientific report",
    "scientific publication",
    "specification",
    "file folder",
    "news article",
    "budget",
    "invoice",
    "presentation",
    "questionnaire",
    "resume",
    "memo"
  ],
  "counts_by_label_id": {
    "0": 65,
    "1": 65,
    "2": 65,
    "3": 65,
    "4": 65,
    "5": 65,
    "6": 65,
    "7": 65,
    "8": 65,
    "9": 65,
    "10": 65,
    "11": 65,
    "12": 65,
    "13": 65,
    "14": 65,
    "15": 65
  },
  "samples_path": "data/notebook_demo/rvl_cdip_recreation/recreation_samples.jsonl",
  "counts_path": "data/notebook_demo/rvl_cdip_recreation/recreation_counts.csv"
}
✓ export verified on disk

6. Peek + next steps

Reload helpers for downstream recreation / OCR / classifier work.

# Peek one document per class
peek = (
    sample_df.sort_values(["label_id", "document_id"])
    .groupby("label_id", as_index=False)
    .first()[["label_id", "label", "split", "document_id", "image_relpath"]]
)
display(peek)

# Optional: resolve a single row through the store API
example_id = samples[0]["document_id"]
print("store.get_document:", store.get_document(example_id))

display(
    Markdown(
        f"""
**Done.** Recreation set ready:

- `{samples_path.relative_to(REPO_ROOT)}` — {len(samples)} rows
- `{manifest_path.relative_to(REPO_ROOT)}` — seed={SEED}, n_per_class={N_PER_CLASS}

CLI equivalents:
```bash
python -m src.rvl_cdip summary
python -m src.rvl_cdip query "SELECT label_id, COUNT(*) AS n FROM documents GROUP BY label_id"
```
"""
    )
)
label_id label split document_id image_relpath
0 0 letter test test:imagesg/g/n/y/gny54a00/89989717.tif imagesg/g/n/y/gny54a00/89989717.tif
1 1 form test test:imagesb/b/v/c/bvc73e00/2024795599.tif imagesb/b/v/c/bvc73e00/2024795599.tif
2 2 email test test:imagesb/b/z/k/bzk82a00/527929946+-9947.tif imagesb/b/z/k/bzk82a00/527929946+-9947.tif
3 3 handwritten test test:imagesb/b/p/b/bpb80d00/517686892+-6894.tif imagesb/b/p/b/bpb80d00/517686892+-6894.tif
4 4 advertisement test test:imagesh/h/o/z/hoz42f00/tob14423.32.tif imagesh/h/o/z/hoz42f00/tob14423.32.tif
5 5 scientific report test test:imagesd/d/a/h/dah18e00/1001766862_1001766... imagesd/d/a/h/dah18e00/1001766862_1001766864.tif
6 6 scientific publication test test:imagesb/b/a/g/bag59c00/PUBLICATIONS035819... imagesb/b/a/g/bag59c00/PUBLICATIONS035819-5.tif
7 7 specification test test:imagesf/f/c/a/fca81a00/2057483292_2057483... imagesf/f/c/a/fca81a00/2057483292_2057483295.tif
8 8 file folder test test:imagesb/b/x/u/bxu70a00/0060162220.tif imagesb/b/x/u/bxu70a00/0060162220.tif
9 9 news article test test:imagesa/a/c/z/acz91c00/2080718792.tif imagesa/a/c/z/acz91c00/2080718792.tif
10 10 budget test test:imagesl/l/x/l/lxl70e00/89690697_89690708.tif imagesl/l/x/l/lxl70e00/89690697_89690708.tif
11 11 invoice test test:imagesa/a/g/d/agd35f00/0060118950.tif imagesa/a/g/d/agd35f00/0060118950.tif
12 12 presentation test test:imagesh/h/t/w/htw82c00/2081505522.tif imagesh/h/t/w/htw82c00/2081505522.tif
13 13 questionnaire test test:imagesj/j/b/a/jba91a00/1003367107.tif imagesj/j/b/a/jba91a00/1003367107.tif
14 14 resume test test:imagesg/g/x/d/gxd99c00/40015392-5396.tif imagesg/g/x/d/gxd99c00/40015392-5396.tif
15 15 memo test test:imagesd/d/v/x/dvx88c00/85221606_1607.tif imagesd/d/v/x/dvx88c00/85221606_1607.tif
store.get_document: {'document_id': 'test:imagesz/z/p/v/zpv93d00/508330972_508330974.tif', 'split': 'test', 'label_id': 0, 'image_relpath': 'imagesz/z/p/v/zpv93d00/508330972_508330974.tif', 'image_abspath': None, 'source_line': 13284, 'metadata_json': '{}', 'created_at': 1784780769.0625181, 'label': 'letter'}

Done. Recreation set ready:

  • data/notebook_demo/rvl_cdip_recreation/recreation_samples.jsonl — 1040 rows
  • data/notebook_demo/rvl_cdip_recreation/recreation_manifest.json — seed=42, n_per_class=65

CLI equivalents:

python -m src.rvl_cdip summary
python -m src.rvl_cdip query "SELECT label_id, COUNT(*) AS n FROM documents GROUP BY label_id"
Back to top
